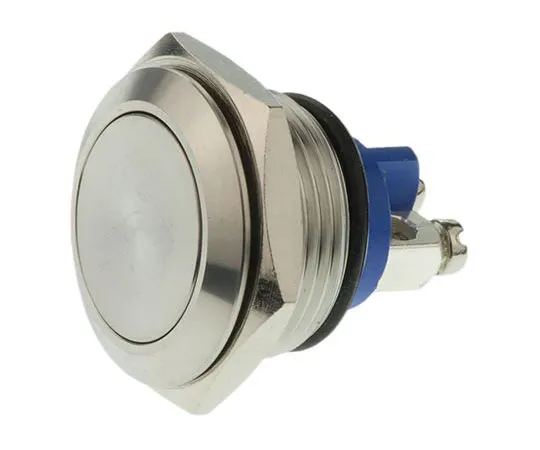

63-7556-32 Schurter NO Push Button Switch, IP65, IP67, Through Hole 1301.956
Product Description
Product Model: 63-7556-32Product Brand: Schurter Featur […]
Contact Us
Product Details
Product Model: 63-7556-32
Product Brand: Schurter
Features
- Signal Switching Push-button Switch. Stainless steel momentary pushbutton switch Panel sealed to IP65 Screw terminals Contact rating: 50mA @ 24V d.c. Minimum switching voltage: 50mV d.c. Contact resistance: 10mΩ Gold contacts Mechanical life 500000 operations Electrical life 300000 operations Depth behind panel 33, max. panel thickness 6mm, panel cut-out 18mm
Spec
- Quantity:1box(40pieces)
- Mounting Type : Through Hole
- Illuminated : No
- Contact Configuration : NO
- IP Rating : IP65, IP67
- Contact Current Rating : 50 mA @ 24 V dc
- Actuator Shape : Flat
- CODE No.:173-9927
