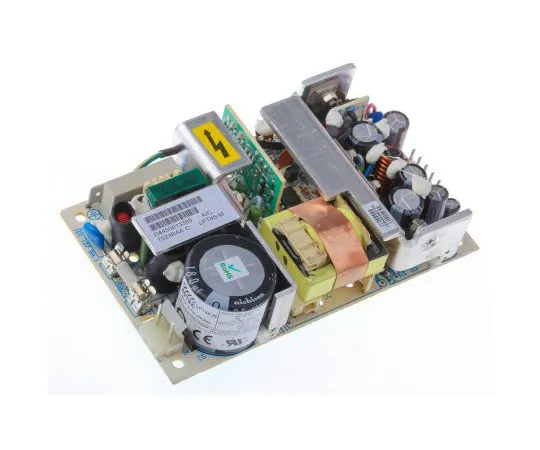

63-7555-99 Artesyn Embedded Technologies 40W Triple Output Embedded Switch Mode Power Supply SMPS, 2.5 A, 5 A, 700 mA, 5/±15V dc LPT45-M
model:
63-7555-99
brand:
Artesyn Embedded Technologies
Product Description
Product Model: 63-7555-99Product Brand: Artesyn Embedde […]
Contact Us
Product Details
Product Model: 63-7555-99
Product Brand: Artesyn Embedded Technologies
Features
- VDE0750/EN60601-1, UL2901, CSA 22.2 NO 601.1. Total of output loads must not exceed rating of unit. Figures in brackets indicate overall size with cover. 40W to 60W Medically Approved, Single/Triple Output. In-built EMI filter (Class B) Overload and overvoltage protection Medical safety approvals Remote sense on main output Adjustable output option
Spec
- Quantity:1piece
- Output Voltage : 5/±15V dc
- Output Current : 2.5 A, 5 A, 700 mA
- Power Rating : 40W
- Number of Outputs : 3
- Input Voltage : 120 → 300 V dc, 85 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Open Frame
- Length : 127mm
- Width : 76.2mm
- Depth : 29mm
- Weight : 230g
- Maximum Temperature : +50°C
- Minimum Temperature : 0°C
- CODE No.:455-7702
