63-7555-74 Gems Sensors Gauge for Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil Pressure Sensor, 250bar Max Pressure Reading , 8 3100B0250S01E000
Electronic/Electrical Parts and Controll Equipments

63-7555-74 Gems Sensors Gauge for Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil Pressure Sensor, 250bar Max Pressure Reading , 8 3100B0250S01E000

model: 63-7555-74
brand: Gems Sensors

Product Description

Product Model: 63-7555-74Product Brand: Gems Sensors Fe […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7555-74
Product Brand: Gems Sensors

Features

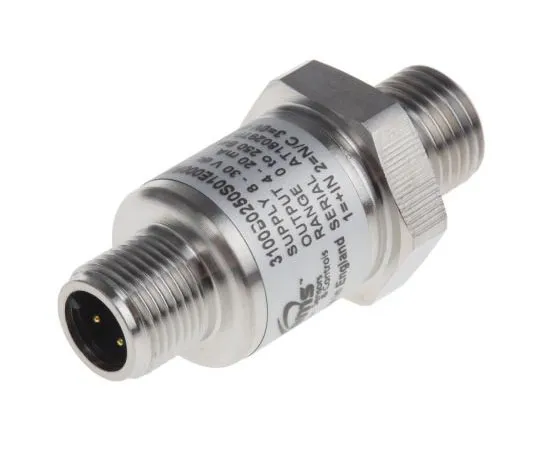

  • Pressure Transmitters - 3100 Series M12 Connections. Gems Sensors 3100 series pressure transmitters offer consistent high levels of performance, reliability and stability in a wide range of compact package sizes. They feature all stainless steel wetted parts and a wide choice of electrical outputs to suit most applications. At the heart of the 3100 series is a sputter element that also provides exceptional temperature specifications. Features and Benefits. High proof pressures. Broad choice of outputs. Operating temperature: -40°C to +120°C. Ideal for installations where space is at a premium. Stainless steel wetted parts. RoHS compliant. IP67 Rated. 0.25% FS accuracy. M12 connections

Spec

  • Quantity:1piece
  • Pressure Reading Type : Gauge
  • Minimum Pressure Reading : 0bar
  • Maximum Pressure Reading : 250bar
  • Accuracy : 0.25 %
  • Output Type : Analogue
  • Media Measured : Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil
  • Process Connection : G1/4
  • Analogue Output : 4 → 20 mA
  • Response Time : 1 ms
  • Supply Voltage : 8 → 30 V dc
  • IP Rating : IP67
  • Maximum Operating Temperature : +125°C
  • CODE No.:455-4781
