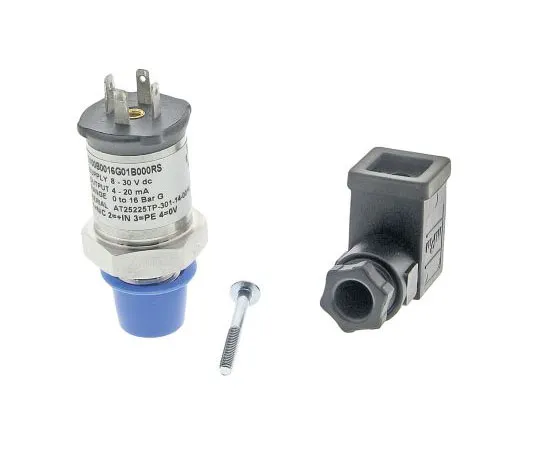

63-7555-69 Gems Sensors Gauge for Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil Pressure Sensor, 16bar Max Pressure Reading , 8 3100B0016G01B000
Product Description
Product Model: 63-7555-69Product Brand: Gems Sensors Fe […]
Contact Us
Product Details
Product Model: 63-7555-69
Product Brand: Gems Sensors
Features
- plug. Pressure Transmitter - MiniMap (DIN), Series 3000. The 3000 Series Pressure Sensor is ideal for OEM ‘s that require consistent high levels of performance reliability and stability. Offering you stainless steel wetted parts, a variety of electrical and pressure connections, and wide choice of electrical outputs allowing stock configurations suitable for most applications without modification. The sensors sputter element provides exceptional temperature specifications. Features ; Benefits. Offers reliability and performance to a high standard Sputtered thin film unit Stainless steel wetted parts Various electrical and pressure connections Compact RoHS compliant Recalibration not required No internal ‘O ‘ ring seals 3 x FS proof pressure IP65 Mini DIN 43650C GDS connection. Product Application Information. The 3000 Series pressure sensors are ideal for installation where there is limited space.
Spec
- Quantity:1piece
- Pressure Reading Type : Gauge
- Minimum Pressure Reading : 0bar
- Maximum Pressure Reading : 16bar
- Accuracy : 0.25 %
- Output Type : Analogue
- Media Measured : Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil
- Process Connection : G1/4
- Analogue Output : 4 → 20 mA
- Response Time : 1 ms
- Supply Voltage : 8 → 30 V dc
- IP Rating : IP65
- Maximum Operating Temperature : +125°C
- CODE No.:455-4630
