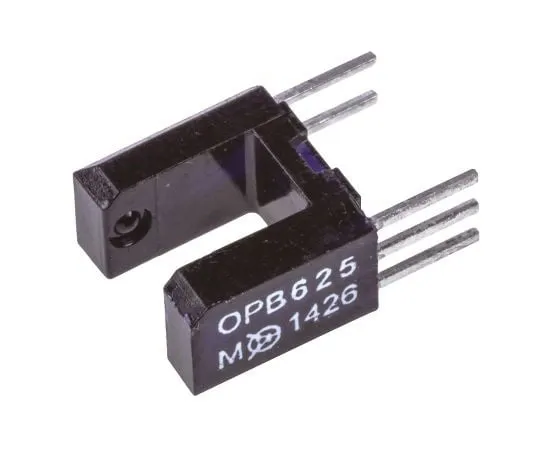

63-7555-23 OPB625 Optek, Through Hole Slotted Optical Switch, Buffer, Open-Collector with 10K Pull-Up Resistor Output OPB625
Product Description
Product Model: 63-7555-23Product Brand: Optek Features […]
Contact Us
Product Details
Product Model: 63-7555-23
Product Brand: Optek
Features
- OPB625, OPB626, OPB627 and OPB628 Photologic Series Slotted Optical Switches. This series of Photologic® slotted optical switches, from Optek Technology, consist of an IR LED and a monolithic integrated circuit. This includes a photodiode, a linear amplifier and a Schmitt trigger on a single silicon chip. These slotted optical switches feature a TTL/LSTTL compatible logic level output. They offer four output options.. Features of the slotted optical switches: PCB mounted Lead centers: 8.13 mm Gap size: 4.83 mm Enhanced signal to noise ratio
Spec
- Quantity:1piece
- Output Device : Buffer, Open-Collector with 10K Pull-Up Resistor
- Number of Channels : 1
- Typical Rise Time : 30ns
- Typical Fall Time : 30ns
- Mounting Type : Through Hole
- Number of Pins : 5
- Dimensions : 5.58 x 10.16 x 9.52mm
- Height : 9.52mm
- Length : 5.58mm
- Maximum Operating Temperature : +100°C
- Minimum Operating Temperature : -40°C
- Slot Width : 4.83mm
- Width : 10.16mm
- Operating Temperature Range : -40 → +100°C
- CODE No.:455-0868
