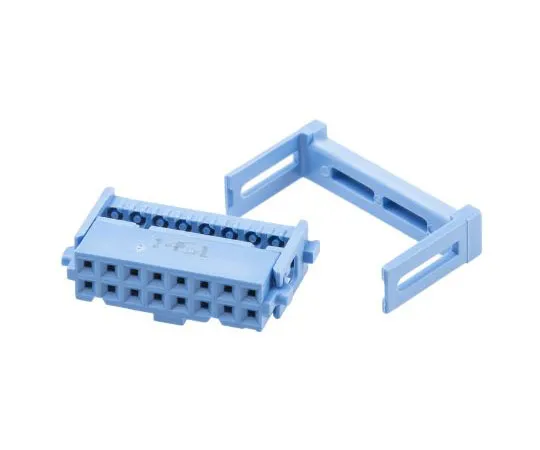

63-7553-99 TE Connectivity 16-Way IDC Connector Socket for Cable Mount, 2-Row 1-1658526-1
Electronic/Electrical Parts and Controll Equipments

63-7553-99 TE Connectivity 16-Way IDC Connector Socket for Cable Mount, 2-Row 1-1658526-1

model: 63-7553-99
brand: TE Connectivity

Product Description

Product Model: 63-7553-99Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7553-99
Product Brand: TE Connectivity

Features

  • TE Connectivity AMP-Latch 609 Series 2.54 mm IDC Ribbon Cable Socket Connectors. These AMP-Latch 609 series ribbon cable sockets feature IDC contacts for producing fast and economical mass terminations without the need for preparing or stripping wire. The tuning fork contacts of these AMP -Latch 609 series ribbon cable sockets have a military approved design at an affordable cost. The contacts provide uniform latching of the contacts and connect the housing with the connector cover. The housings of these AMP -Latch 609 series IDC sockets are made from UL 94V-0 thermoplastic and feature military and centre polarization. Versions of these AMP -Latch 609 series IDC ribbon cable connectors are available with a strain relief for extra support and strength. These strain reliefs can also be ordered separately. Features and Benefits. IDC contacts for fast and economical mass terminations Military approved tuning fork design Military and centre polarization Versions available with strain relief. Applications. These AMP -Latch 609 series ribbon cable sockets are suitable for *** in a wide range of applications. These applications include network equipment, industrial controls, electrical and medical testing, home and industrial appliances, consumer electronics and automotive applications

Spec

  • Quantity:1bag(50pieces)
  • Number of Contacts : 16
  • Number of Rows : 2
  • G***er : Female
  • Pitch : 2.54mm
  • Mounting Type : Cable Mount
  • Body Orientation : Right Angle
  • Termination Method : IDC
  • Current Rating : 1A
  • Contact Plating : Gold over Nickel
  • Series : AMP-LATCH 609
  • Minimum Operating Temperature : -55°C
  • Maximum Operating Temperature : +125°C
  • Housing Material : Thermoplastic
  • CODE No.:164-9090
