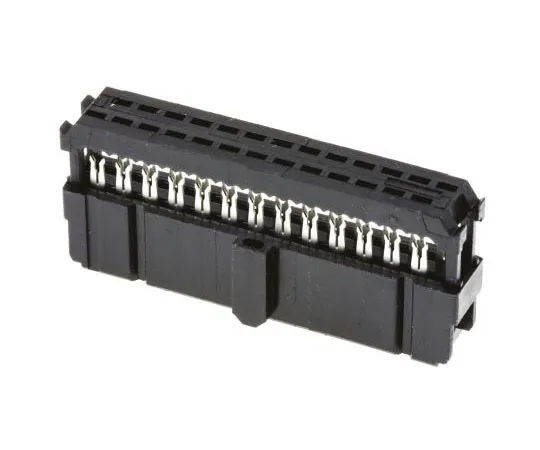

63-7553-77 TE Connectivity 26-Way IDC Connector Socket for Cable Mount, 2-Row 1658621-6
model:
63-7553-77
brand:
TE Connectivity
Product Description
Product Model: 63-7553-77Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7553-77
Product Brand: TE Connectivity
Features
- DIN 41651, DIN EN 60352-3//4. TE Connectivity AMP-LATCH Novo 2.54mm IDC Ribbon Cable Connectors with Centre and Military Polarized Centres. AMP-LATCH Novo wire to board IDC ribbon cable connectors with centre and military polarized centres and a 2.54 x 2.54 mating grid for 1.27mm pitch ribbon cable. These AMP-LATCH Novo IDC ribbon cable connectors are made from UL 94V-0 thermoplastic with two rows of IDC duplex plated tuning fork style contacts accepting a wire size of 28-26 AWG. A cover is supplied with these AMP-LATCH Novo housing assemblies and optional strain reliefs are available, see stock number ; 454-2514 454-2514 typically. Part numbers X-1658621-X have 0.00038 gold plated contacts Part numbers X-1658622-X have 0.00076 gold plated contacts
Spec
- Quantity:1set(600pieces)
- Number of Contacts : 26
- Number of Rows : 2
- G***er : Female
- Pitch : 2.54mm
- Mounting Type : Cable Mount
- Body Orientation : Right Angle
- Termination Method : IDC
- Current Rating : 1A
- Contact Plating : Gold over Nickel
- Series : AMP-LATCH Novo
- Minimum Operating Temperature : -65°C
- Maximum Operating Temperature : +105°C
- Housing Material : Thermoplastic
- CODE No.:164-1526
