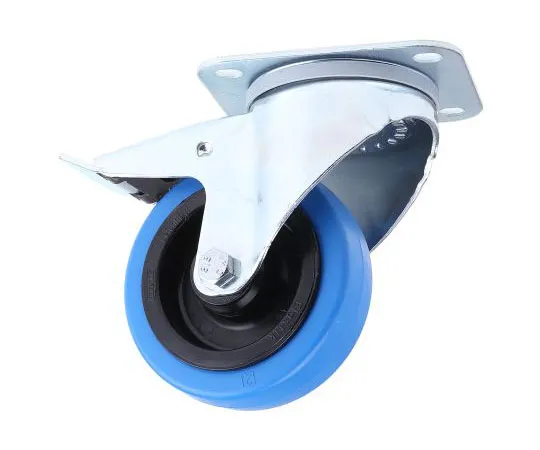

63-7553-55 Tente Swivel Swivel Castor, 150kg Load Capacity, 100mm Wheel Diameter 902197
Product Description
Product Model: 63-7553-55Product Brand: Tente Features […]
Contact Us
Product Details
Product Model: 63-7553-55
Product Brand: Tente
Features
- Tente Alpha Castor Wheel. The Alpha series from Tente is a practical castor system with technical components allowing central locking, variable fitting options and optimised steering. Features and Benefits. Total lock for simultaneously locking the wheel and swivel housing. User fri***ly central lock for simultaneously locking more than one castor using a central actuation lever. Optimised steering with a directional lock for steering around b***s as well as straight lines. Variable fitting options for a large range of applications. Double ball bearing swivel head for easy steering. Low vibration and shock absorbing properties due to extra soft wheels. Ergonomically fri***ly wheels with optimised rolling resistance. Wheels made from heat resistant materials for extreme environments. Low wear and tear. All metal components made from stainless steel. Swivel bearing with dust ring for uninterrupted movement. Sealed bearings to protect against water spray and dirt. Quiet rolling for a noise reduced working environment. Product Application Information. The Alpha range of castors from Tente have been specially designed to be ***d on induction trolleys and other transport devices.
Spec
- Quantity:1piece
- Wheel Diameter : 100mm
- Load Capacity : 150kg
- Overall Height : 128mm
- Wheel Width : 34mm
- Fixing Plate Dimensions : 105 x 80mm
- Rotation : Swivel
- Application : Industrial
- Tyre Material : Rubber
- Includes Brake : Yes
- Fixing Centres : 80 x 60mm
- Weight Class : Heavy Duty
- Features : Quiet Operation
- Number of Fixing Holes : 4
- Fixing Hole Size : 9mm
- Hub Bearing Type : Roller Bearing
- CODE No.:454-1139
