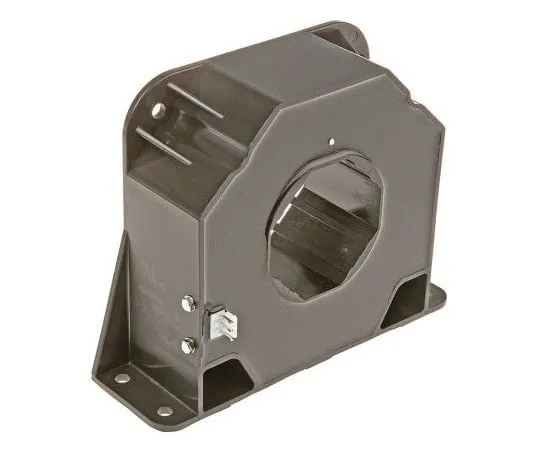

63-7552-30 LEM LF Series Closed Loop Current Sensor, 2000A nominal current, 400mArms output current LF 2005S
Product Description
Product Model: 63-7552-30Product Brand: LEM Features LF […]
Contact Us
Product Details
Product Model: 63-7552-30
Product Brand: LEM
Features
- LF - S Series. Current transducers LF-S Series for the electronic measurement of currents: dc, ac, pulsed.., with galvanic separation between the primary circuit and the secondary circuit. They are speciallly designed for industrial applications. Measurement of ac, dc and pulsed currents High Accuracy - Closed Loop High Noise Immunity Low Temperature Drift Current Overload Capability Optimised response time Wide Frequency Bandwidth Multiple Mounting Options Body material plastic to UL94-V0 Operating temperature range -10 → +70°C
Spec
- Quantity:1piece
- Sensor Technology : Closed Loop
- Nominal Current : 2000A
- Supply Voltage : 15 → 24 V
- Sensor Type : Hall Effect
- Mounting Type : Panel Mount
- Frequency Bandwidth : DC to 100 kHz
- Bore Size : 60.5mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Depth : 52mm
- Height : 68.5mm
- Width : 170mm
- CODE No.:451-1403
