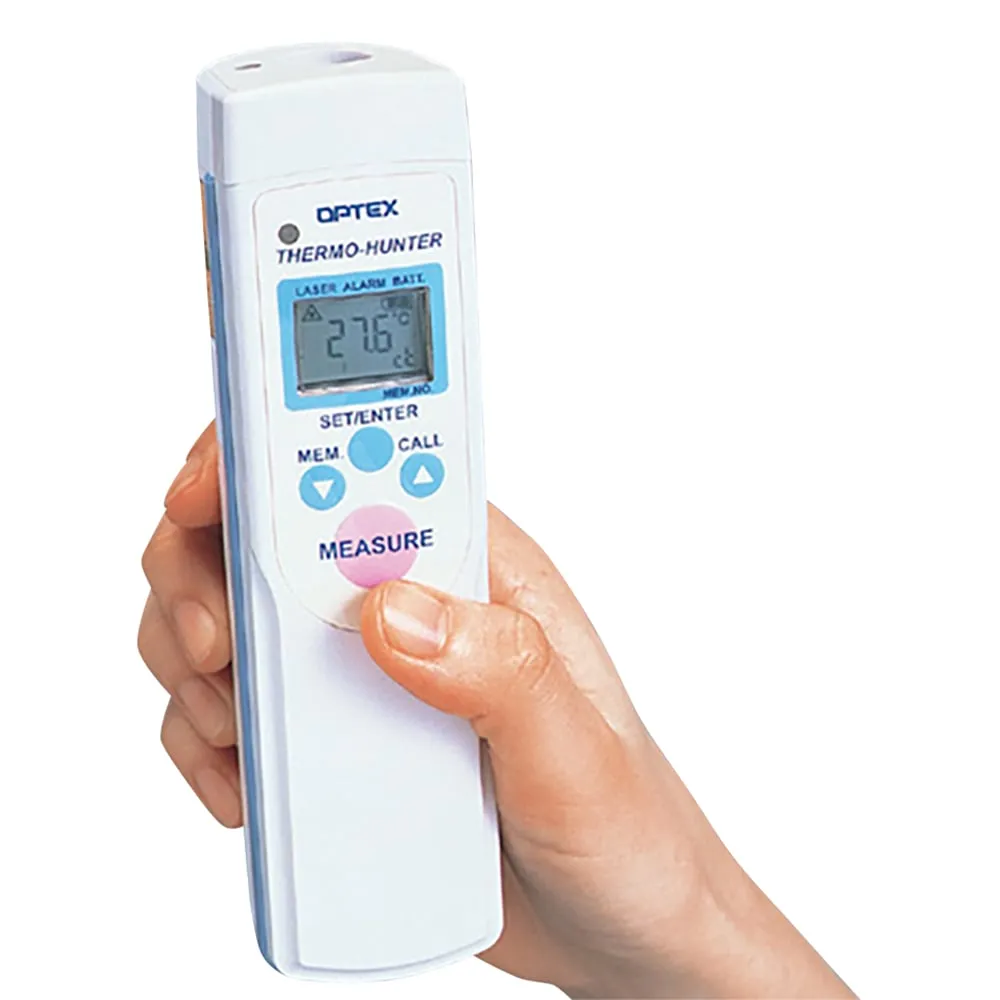

1-5621-01-20 Waterproof Non-contact Thermometer Calibration Certaificate PT-7LD
Product Description
Product Model: 1-5621-01-20Product Brand: OPTEX Company […]
Contact Us
Product Details
Product Model: 1-5621-01-20
Product Brand: OPTEX Company, Limited
Features
- Excellent shock resistance.
- IP67 waterproof design resistant to harsh environments such as water and dust.
- The body is made of antibacterial resin.
- It can record 99 data points.
Spec
- Optics: Mirror type/Silicon filter
- Detection Element/Wavelength: Thermopile/8 ~ 14 micron
- Accuracy of measurement: - 20.0 ~ 0.0 degrees C/+ 3.0 degrees C, 0.1 to + 200 degrees C/+ 2.0 degrees C
- Reproducibility: +/- 1.0 degrees C of reading
- Aim: Laser marker (Class 2)
- Measuring field of view: phi 25/300 mm
- Backlit
- Data Recording: 99 point memory
- Power supply: 1 x 9V stacked alkaline battery (included for testing)
- Protection Structure: IP 67
- Material: ABS resin (antibacterial)
- Size: 160 x 44 x 42 mm
- Weight: approx. 200 g (battery included)
- Measuring range (deg. C): -30 to + 200
- Resolution (degrees C): 0.1
- Emissivity: 0.85/0.95
- Distance factor (D: S): 12: 1
- Response time: 0.5 seconds
- Maximum/minimum value display: Yes
- Average display: Yes
- Hold: Yes
- Laser marker: Yes
- Backlight: Yes
- Memory: 99 data
- Drip-proof and waterproof: IP 67
- Power supply: 1 x 9V stacked alkaline battery (included for testing)
- *The standard calibration points are three points: low temperature, medium temperature and high temperature. If you would like additional points, please contact us separately.
