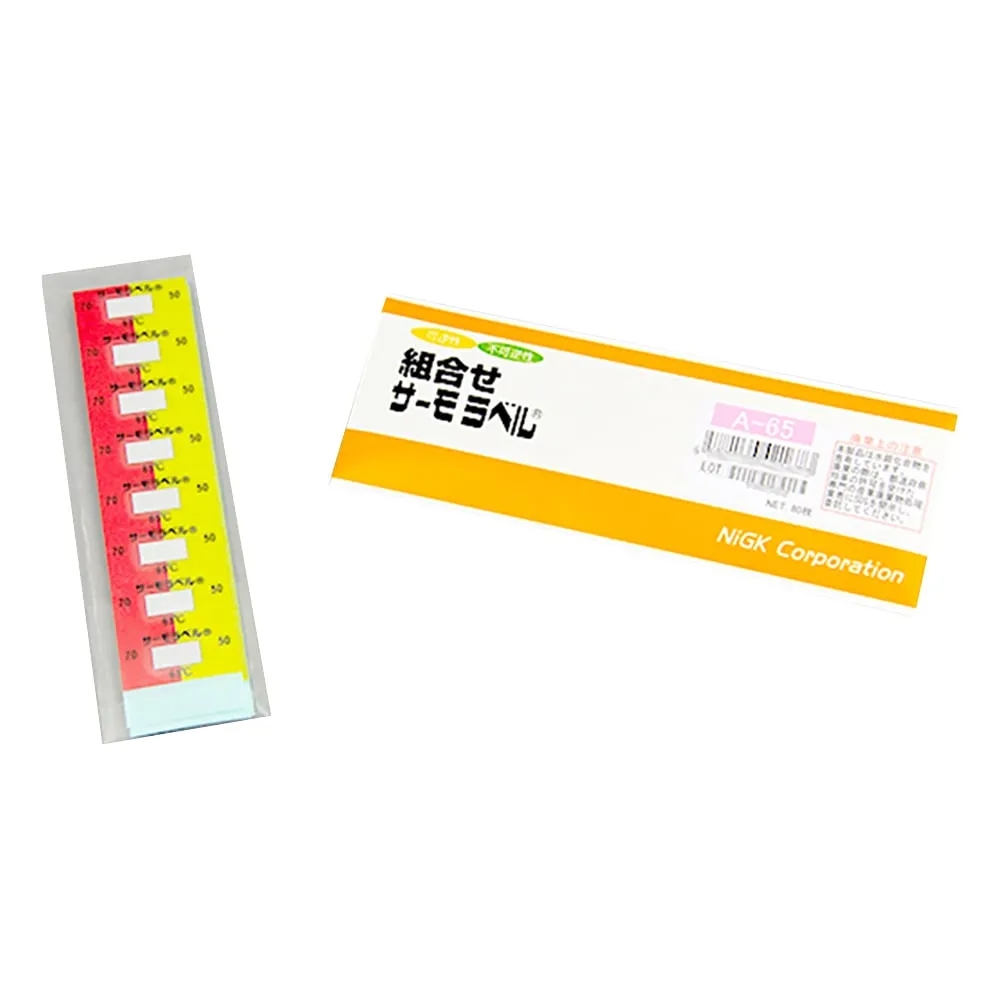

1-5616-01 Combination Thermo Label 80 Pieces A-65
Product Description
Product Model: 1-5616-01Product Brand: NiGK Corporation […]
Contact Us
Product Details
Product Model: 1-5616-01
Product Brand: NiGK Corporation
Features
- Thermolabel is based on a reversible thermosheet, and the center of the thermosheet is combined with an irreversible thermal element.
- The past temperature history is shown in the temperature indicating element section, and the current temperature is displayed with or without discoloration of the base section (discoloration of 70°C on the left half and 50°C on the right half).
Spec
- Model number: A-65
- Size: Base/15 x 30mm, Thermochromic element/6 x 12mm
- Quantity: 1 box (80 sheets)
- Discoloration temperature: 65℃ (thermochromic element)
- Primary color -> incident color: White -> black (thermochromic element)
- Irreversibility/reversibility
- Discoloration temperature: Left half/70℃, Right half/50℃ (base)
- Primary color -> incident color: Left half/red -> <- dark brown, Right half/yellow -> <- yellowish orange (base)
- *Incident color of high temperature -> low temperature due to temperature lowering is about 15℃ lower than the displayed temperature by hysteresis phenomenon.
- RoHS3 (EU)2015/863 Certificates can be issued
