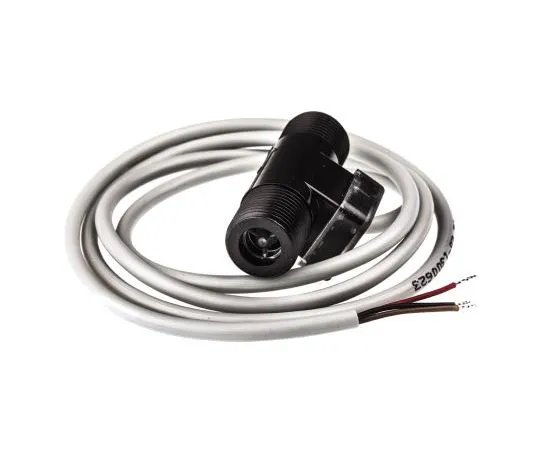

63-7549-17 Gems Sensors Turbine Flow Sensor, 0.5 L/min → 5 L/min, FT-110 Series 173936-C
Electronic/Electrical Parts and Controll Equipments

63-7549-17 Gems Sensors Turbine Flow Sensor, 0.5 L/min → 5 L/min, FT-110 Series 173936-C

model: 63-7549-17
brand: Gems Sensors

Product Description

Product Model: 63-7549-17Product Brand: Gems Sensors Fe […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7549-17
Product Brand: Gems Sensors

Features

  • FT-110 Series Turbine Flow Sensor. Gems™ hall effect turbine flow rate sensor is ideal for OEM applications involving low flow liquid monitoring. The low cost coupled with 1/2% repeatability makes it an ideal candidate for replacing dispensing timer systems. Turbine technology does not react to changes in the system pressure ca***d by ageing filters, unlike timing systems. The sensors standard power and output specifications make it easy to retrofit to existing controllers. Features and Benefits. Low Flow Rates of 0.5 L/min to 30 L/min. Accuracy ±3% of Reading. Mounts in Any Orientation. With cable

Spec

  • Quantity:1piece
  • Media Monitored : Liquid
  • Device Type : Turbine
  • Minimum Flow Rate : 0.5 L/min
  • Maximum Flow Rate : 5 L/min
  • Supply Voltage : 5 → 24 V dc
  • Pipe Diameter Range : 3/8 in
  • Connection Type : 3/8 BSP
  • Maximum Pressure : 200psi
  • Material : Nylon 12
  • Minimum Operating Temperature : -20°C
  • Maximum Operating Temperature : +100°C
  • Series : FT-110
  • CODE No.:446-8286
