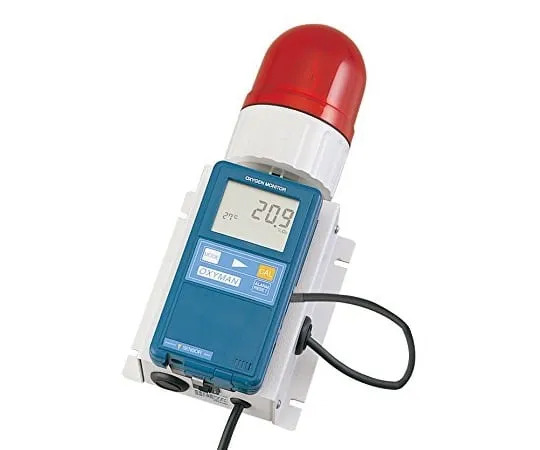

1-5391-11 Oxygen Shortage Alarm Unit Internal Sensor Type Directly Attached Revolving Light OM-25MF01-PRB
model:
1-5391-11
category:
toner
Product Description
Product Model: 1-5391-11 Features The rotary lamp is ac […]
Contact Us
Product Details
Product Model: 1-5391-11
Features
- The rotary lamp is activated or stopped by the alarm/stop signal from the oxygen monitor.
Spec
-
Model number: OM-25MF01-PRB
- Detection principle: Galvanic battery type
- Measurement range: 0 - 100%O2
- Display precision: +/-0.5% O2 (at 0 - 30%)
- Response speed: Approximately 15 seconds (90% response)
- Alarm start settings: 18+/-1% O2 or less
- Display: Sensor remaining amount, battery life, error, temperature in oxygen monitor
- Size: 80 x 31 x 150mm
- Weight: Approx 270g
-
Power supply: AA dry cell x 3 pieces (included for test) or AC adapter (optional)
- Revolving light: Flash speed/140 times/min, Sound pressure/80dB (1m forward)
- Size: 130 x 284 x 88mm
- Power supply: 100VAC 1A 50/60Hz
- Power cord length: 5m (2P plug)
- Weight: 1.6kg
- Sensor: Internal type
- Revolving light: Direct
