Features

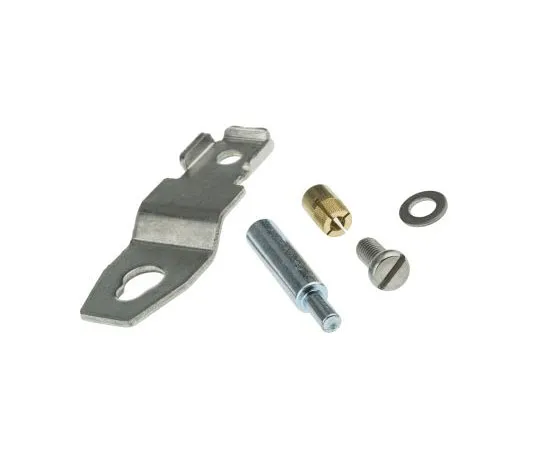

• NFC 15100. BV, IMQ, GL, LROS, UL/c ; UL listed. Size A (stock no. ; 251-5447 251-5447 ) and B (stock nos. ; 446-2963 446-2963 ; ; 123-0652 123-0652 ) are 'Compact Enclosures' and do not accept internal doors. The polyester wall fixing lugs (stock no. ; 446-3130 446-3130 ; ; 123-0644 123-0644 ) are supplied in a pack of 4. Schneider Electric Polyester Wall Mounted (Thalassa). Enclosures. IP66, IK10 (IK08 for glazed door) Double insulation (class II) protection Ambient temperature range: -50 → +130 °C Self-extinguishing material and insulator Plain and Glazed door versions. Inner Doors. Reversible Material glass fibre impregnated polyester Closure by 1//4 turn screws Fixings and Brass inserts supplied with door. Plain Chassis Plates. Material galvanised steel. Perforated Chassis Plates (telequick). Material sheet steel Perforations 26 mm wide x 11 mm high on 30 mm and 11 mm pitches respectively
