Electronic/Electrical Parts and Controll Equipments

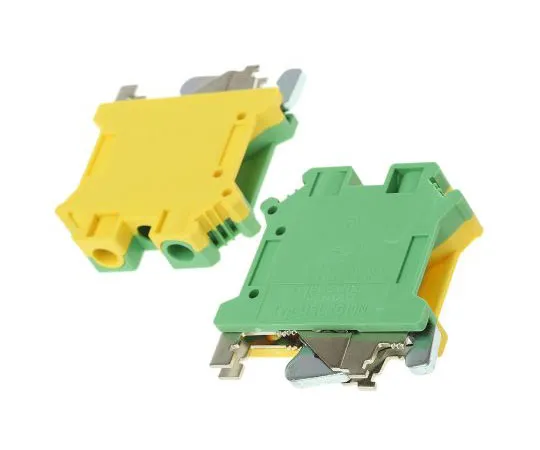

63-7548-55 Phoenix Contact ATEX 2 Way USLKG 10 N Earth Terminal Block, Screw Down 20 → 6 AWG 3003923
model:
63-7548-55
brand:
Phoenix Contact
Product Description
Product Model: 63-7548-55Product Brand: Phoenix Contact […]
Contact Us
Product Details
Product Model: 63-7548-55
Product Brand: Phoenix Contact
Features
- Universal Terminals. Universal terminals moulded in polyamide to fit both 'G' and 'Top Hat' rail. Screw conductor securing with closed screwdriver shafts. Available conductor acceptance sizes, 2.5mm² to 35mm². The range comprises of grey (phase), blue (neutral), and yellow/green (earth) terminals. A 10-way insertion (jumper) bridge is also available, as is a 35mm rail *** bracket. Individual terminals and complementary accessories. Approval Category II 2 GD EEx e II Cert. No. KEMA 98ATEX1651U
Spec
- Quantity:1bag(10pieces)
- Earth Block Type : USLKG 10 N
- Wire Size : 20 → 6 AWG
- Colour : Green/Yellow
- Number of Ways : 2
- Termination Method : Screw Down
- Housing Material : Nylon
- Current Rating : 76A
- Voltage Rating : 750 V
- Length : 42.5mm
- Width : 10.2mm
- Height : 54.5mm
- Hazardous Area Certification : ATEX
- CODE No.:446-1768
