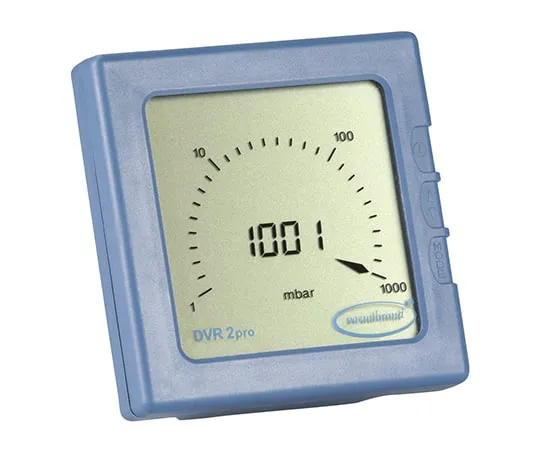

1-5118-01-20 Vacuum Gauge With Calibration Certificate DVR2pro
Product Description
Product Model: 1-5118-01-20Product Brand: Vacuubrand Fe […]
Contact Us
Product Details
Product Model: 1-5118-01-20
Product Brand: Vacuubrand
Features
- Digital and analog values are displayed simultaneously on the LCD display.
- The display unit can be selected as mbar, Torr or hPa.
Spec
- Model number: DVR2pro
- Measurement range: 1 to 1100 hPa (mbar), 1 to 825 Torr
- Measurement accuracy: < 1mbar (0.75 Torr) ±1digit
- Pressure Transducer: Electric capacity/Ceramic Diaphragm
- Display: analog digital LCD display
- Automatic power supply OFF function
- Vacuum display unit: mbar, Torr, hPa
- Measurement cycle time: 1 second
- Best allowable pressure : 0.15 MPa (1.5 bar)
- Maximum gas temperature: 80 ℃ (a short time)
- Connection: Small flange NW 16, hose nozzle outer diameter φ8 mm, 12mm (replaceable standard attachment)
- Battery : alkaline battery (9V)
- Size: 115 x 115 x 56mm
- Weight: 400g
