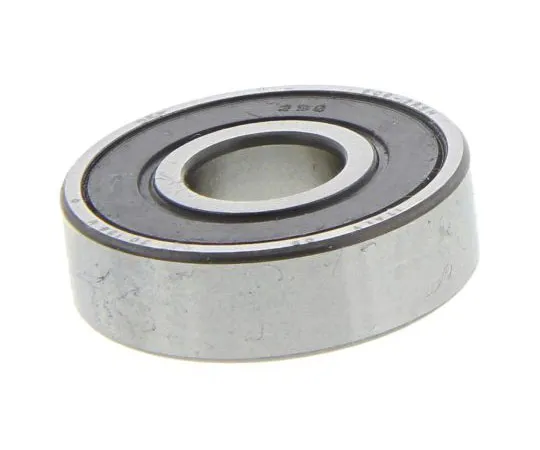

63-7545-11 9mm Deep Groove Ball Bearing 24mm O.D 609-2RSH
Product Description
Product Model: 63-7545-11Product Brand: SKF Features De […]
Contact Us
Product Details
Product Model: 63-7545-11
Product Brand: SKF
Features
- Deep Groove Metric Ball Bearings - Sealed. SKF sealed deep groove ball bearings are versatile ball bearings that suit high and very high speeds, they will accommodate both radial load and axial load in both directions. The ball bearings need very little maintenance. SKF deep groove ball bearings come in a range of different sizes. This range is single row ball bearings. Sealed (2RS1) bearings are fitted with two synthetic rubber seals to prevent leakage of lubricant and entry of dust, water and other harmful material. Features and Benefits. - The seals are made from an oil and wear-resistant synthetic rubber with a steel reinforcement - Operating temperature from -40°C to +120°C - Accepts radial and axial loads - Both standard and C3 clearance available. Application Information. Food and Beverage Industry -Pharmaceutical -Medical industry -Engines and Pumps -Medical Industry -Printing -Versatile More Information What are deep groove ball bearings? These are the most popular type of bearings and consists of an inner ring, outer ring, cage and the ball bearings. The bearings have deep raceway grooves. These type of bearings deliver high performance and high load capacity. Why ***d sealed ball bearings? Ball bearings that spin at high speeds require lubrication and a clean environment By having the ball bearings sealed this offers better protection against dirt and grease therefore the ball bearings have a longer lifespan.
Spec
- Quantity:1piece
- Inside Diameter : 9mm
- Outside Diameter : 24mm
- Ball Bearing Type : Deep Groove
- Race Width : 7mm
- End Type : Sealed
- Number of Rows : 1
- Static Load Rating : 1.66kN
- Material : Steel
- Cage Material : Steel
- Race Type : Plain
- Dynamic Load Rating : 3.9kN
- Bore Type : Parallel
- CODE No.:442-0199
