Features

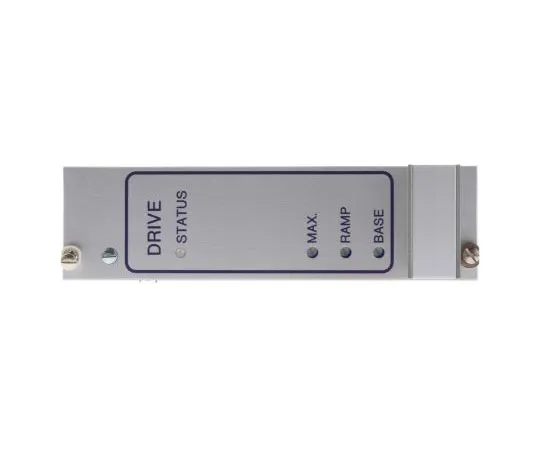

• Bipolar Stepper Drive. Drives motors up to 85V and 6A/phase On board output drive current setting (2.5 to 6.0A) High efficiency chopped constant current power stage provides increased performance and reduced current consumption Single supply rail simplifies power supply requirements Short-circuit and open circuit protected stage for increased reliability Selectable full or half step phase logic Over temperature monitor with selectable automatic drive shutdown Opto-isolated control inputs Control from external clock and direction signals
