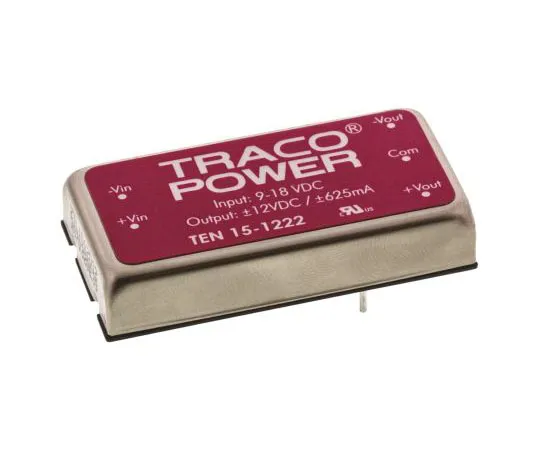

63-7541-04 TRACOPOWER TEN 15 15W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±12V dc TEN 15-1222
Electronic/Electrical Parts and Controll Equipments

63-7541-04 TRACOPOWER TEN 15 15W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±12V dc TEN 15-1222

model: 63-7541-04
brand: TRACOPOWER

Product Description

Product Model: 63-7541-04Product Brand: TRACOPOWER Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7541-04
Product Brand: TRACOPOWER

Features

  • UL 60950-1, EN 60950-1, IEC 60950-1. UL/cUL. 3. Traco 15W Output Regulated Isolated DC-DC Converter - TEN15 Series. 15W single/dual output regulated isolated DC-DC converters with SMD design, ceramic chip capacitors for high reliability and high efficiency. Typical applications for these regulated isolated DC-DC converters include communications, industrial systems and battery powered equipment. Products not recomm***ed for new designs please refer to the alternative at the bottom of the page Wide 2:1 input voltage range High power density Regulated outputs 1.5kVdc input/output isolation High efficiency up to 86% Input filter to meet EN 55022 Class A and FCC Level A without external components Continuous short circuit protection SMD internal construction Shielded metal case with insulated base plate Industry standard pin-out

Spec

  • Quantity:1piece
  • Output Voltage : ±12V dc
  • Input Voltage Range : 9 → 18 V dc
  • Input Voltage Nominal : 12 V dc
  • Isolation Voltage : 1500V dc
  • Power Rating : 15W
  • Output Current : ±625mA
  • Mounting Type : Through Hole
  • Number of Outputs : 2
  • Efficiency : 86%
  • Package : 2 x 1 in
  • Load Regulation : ±5%
  • Maximum Temperature : +85°C
  • Width : 25.4mm
  • CODE No.:433-8416
