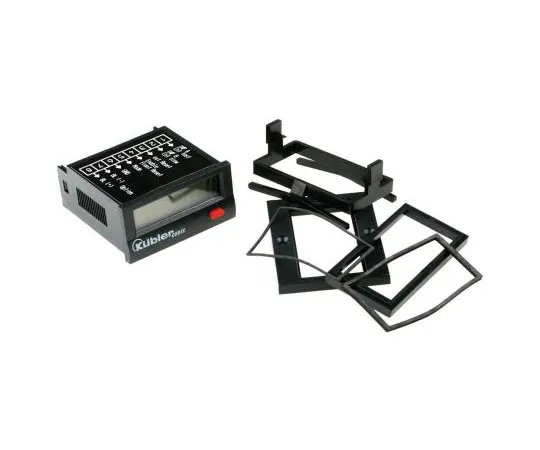

63-7540-53 Kubler 8 Digit, LCD, Digital Counter, 12kHz, 4 → 30 V dc 6.130.012.852
Product Description
Product Model: 63-7540-53Product Brand: Kubler Features […]
Contact Us
Product Details
Product Model: 63-7540-53
Product Brand: Kubler
Features
- Display Counter, Codix 130 series. 8 digit LCD counter for applications without power supply (battery powered) Very good readability due to leading zero blanking and 8mm digit height Slow count input e.g. for mechanical contacts Fast count input up to 30kHz Easy and safe connection due to screw terminals Solution for any counting task-counting mode - NPN, PNP, ac, fast, slow counting Bezels for screw mounting included Easy to ***; no programming required Panel cut-out: 22.2mm x 45mm Operating temperature: -10 → +60°C IP65 Rated
Spec
- Quantity:1piece
- Supply Voltage : 4 → 30 V dc
- Count Mode : Impulses
- Display Type : LCD
- Input Type : Voltage
- Connection Type : Screw
- Reset Method : Electrical, Manual
- Number of Digits : 8
- Mounting Type : Panel Mount
- Count Direction : Bi-Directional
- Digit Height : 8 mm
- Maximum Count Frequency : 12kHz
- Display Range : -9999999 → 99999999
- Weight : 50g
- CODE No.:433-3758
