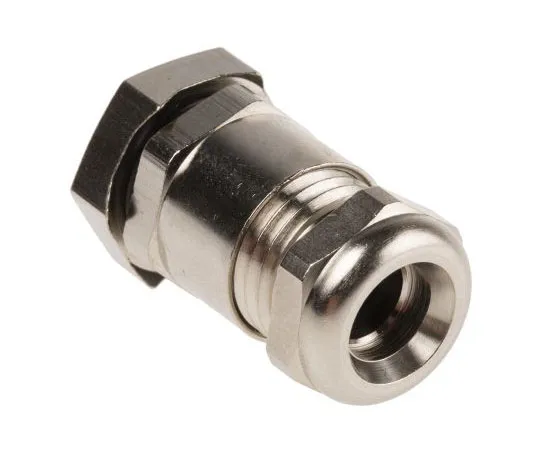

63-7540-37 Lapp Skindicht M12 Cable Gland With Locknut, Nickel Plated Brass, IP68 52103300+52105270
Product Description
Product Model: 63-7540-37Product Brand: Lapp Features L […]
Contact Us
Product Details
Product Model: 63-7540-37
Product Brand: Lapp
Features
- Locknuts. Lapp IP68 Metric Metal Gland. From Lapp, this cable gland has a robust nickel plated construction and provides excellent protection. Whether ***d with panels, junction boxes or machine housing, this cable gland also provides a high degree of strain relief to prevent wear and tear on the cable connection. The gland contains a conical sealing element and a perbunan o-ring seal, for a high degree of environmental resistance. As such the cable gland is watertight, for splash-proof protection against liquids. The simple screw-on action ensures easy fitting and a reduced assembly time. Features and Benefits IP68, 10 Bar Mechanical Resistance Temperature Range -20°C to +80°C Screw-Lock Fixing Metric Sizes Applications The cable glands watertight nature makes it ideal for applications in; Pumps Floater Switches Environment This watertight cable gland is sealed to IP68, which ensures excellent protection against particle ingress and water-proofing even in shallow submersion. As such it is suitable for *** in harsh environments, and even some open air applications.
Spec
- Quantity:1bag(5pieces)
- Thread Size : M12
- Material : Nickel Plated Brass
- Maximum Cable Diameter : 4.8mm
- Minimum Cable Diameter : 3mm
- Colour : Metallic
- IP Rating : IP68
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +80°C
- Locknut Included : Yes
- CODE No.:433-0923
