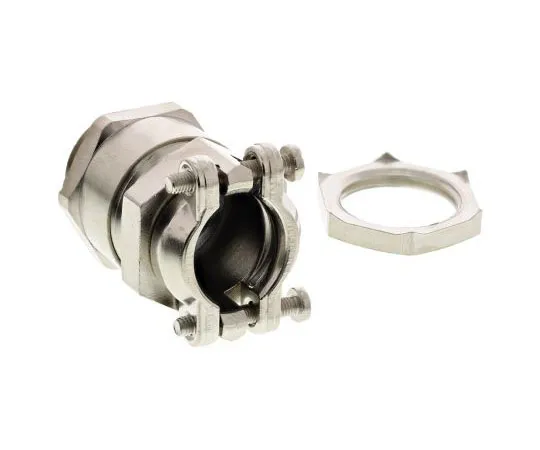

63-7540-35 Lapp Skindicht M20 Cable Gland With Locknut, Nickel Plated Brass, IP55 52103320+52106830
Product Description
Product Model: 63-7540-35Product Brand: Lapp Features L […]
Contact Us
Product Details
Product Model: 63-7540-35
Product Brand: Lapp
Features
- Lock nut. Lapp IP55 PG/Metric Strain Relief Gland. From Lapp, this Skindicht cable is equipped two solid brass saddle clamps that offer superior strain relief in cable management. Its simple screw-on application means it is easily and securely fitted in pre-bored holes. With a solid nickel-plated brass construction, this robust cable clamp ensures excellent mechanical stability. It also offers a moderate degree of environmental sealing. The Skindicht SKZ cable gland also features an incised sealing ring which can adjust to several cable diameters. Features and Benefits Robust Construction IP55 Protection Operating Temperature of -30°C to +80°C Applications This versatile and robust cable gland is suitable for a variety of applications to manage cable attachment through panels, junction boxes and machinery housing. They are often ***d in; Construction Equipment Plant Engineering Electric Motor Manufacturing Environment These cable glands are sealed to IP55, which means they have excellent resistance to dust and particle resistance, and are protected against light water spray from any angle. This means they are suitable for most indoor applications, even in harsh environments.
Spec
- Quantity:1bag(5pieces)
- Thread Size : M20
- Material : Nickel Plated Brass
- Maximum Cable Diameter : 15mm
- Minimum Cable Diameter : 13mm
- Colour : Metallic
- IP Rating : IP55
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +80°C
- Locknut Included : Yes
- CODE No.:433-0872
