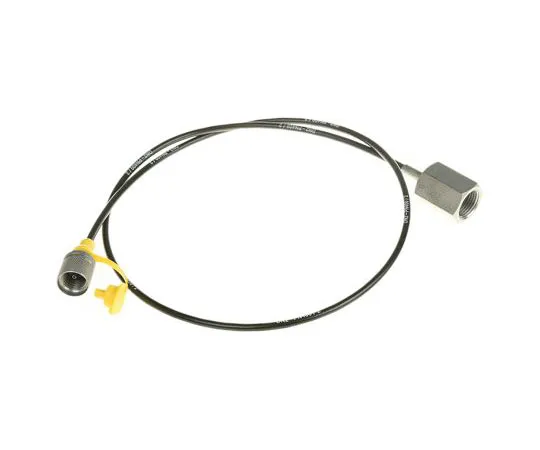

63-7540-11 Stauff Hydraulic Test Point Hose SMS 20/M 1/2" 1000A, Connection A M16, Connection B G 1/2 SMS 20/M 1/2" 1000A
Product Description
Product Model: 63-7540-11Product Brand: Stauff Features […]
Contact Us
Product Details
Product Model: 63-7540-11
Product Brand: Stauff
Features
- For measuring with liquid pressure media, bleed before connecting tube. Protect from fire, sharp corners and hot objects. Test Hose SMS. Gauge adaptor and test hose allow remote monitoring of hydraulic systems Burst pressure 1100 bar 5mm hose outside diameter Minimum b*** radius 20mm Pressure/temperature factor 122% (to 0°C), 110% (at 30°C), 100% (at 50°C), 86% (at 80°C), 77% (at 100°C)
Spec
- Quantity:1piece
- Connection A Thread : M16
- Connection B Thread : G 1/2
- Length : 1m
- Hose Outside Diameter : 5mm
- Maximum Operating Pressure : 630 bar
- Burst Pressure : 1100bar
- Minimum B*** Radius : 20mm
- Minimum Operating Temperature : -35°C
- Connection B - Thread Standard : G
- Connection B - Thread Size : 1/2 in
- Maximum Operating Temperature : +100°C
- Connection A - Thread Standard : Metric
- Connection A - Thread Size : M16
- CODE No.:432-5678
