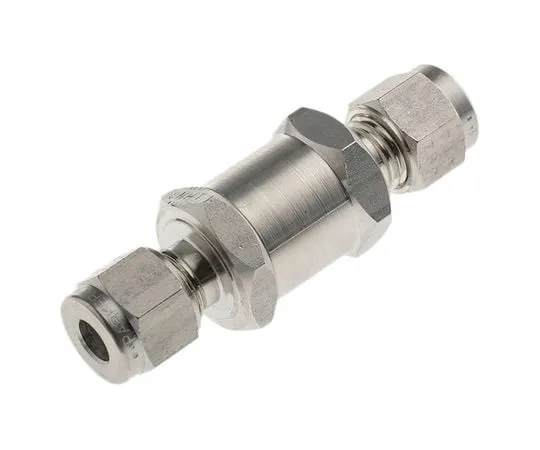

63-7539-91 Parker Process Check Valve M6A-C4L-25-SS M6A-C4L-25-SS
Product Description
Product Model: 63-7539-91Product Brand: Parker Features […]
Contact Us
Product Details
Product Model: 63-7539-91
Product Brand: Parker
Features
- Check valves that have not been actuated for some time may initially crack at higher than the quoted crack pressure. ‘C ‘ Series Check Valve. Designed for uni-directional flow control of fluids and gases in process and instrumentation applications Pressure rating: 6000 psig (414 bar) Body material: ASTM A276 Type 316 Spring material: 316 stainless steel Operating temperature range: –26 to +204°C Blow-out resistant seat design Back-stopped poppet minimizes spring stress Crack pressure: 25 psig (1.75 bar) Reseal pressure: 4 psig (0.28 bar) less than cracking pressure Factory tested for crack and reseat Fluorocarbon elastomer seat/seal
Spec
- Quantity:1piece
- Connection : 6 mm Compression
- Body Material : Stainless Steel
- Maximum Working Pressure : 414 bar
- Flow Factor Kv : 0.64m³/h
- Thread Size : 6mm
- CODE No.:432-5117
