Electronic/Electrical Parts and Controll Equipments

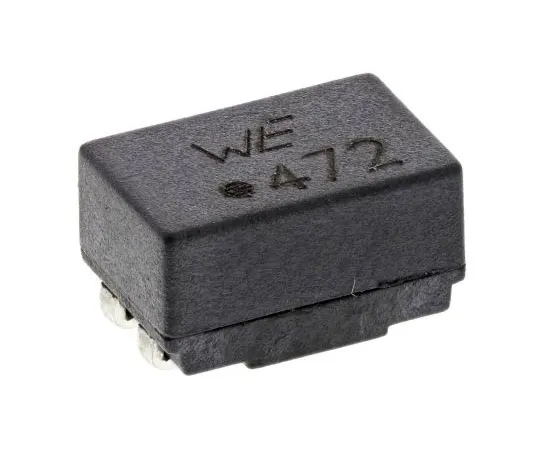

63-7539-73 Wurth WE-SL2 Series Wire-wound SMD Inductor with a Ferrite Core, 4.7 mH ±50% Dual 500mA Idc 744220
model:
63-7539-73
brand:
Wurth Elektronik
Product Description
Product Model: 63-7539-73Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-7539-73
Product Brand: Wurth Elektronik
Features
- Wurth WE-SL2 Series SMD Common Mode Chokes. Double current-compensated ring core choke 4-way SMD housing Current rating up to 1.6A Impedances up to 9kΩ. Applications. Chokes for bus systems such as CAN, USB, ISDN Signal and data line filtering Power supplies Measuring signal lines
Spec
- Quantity:1piece
- Inductance : 4.7 mH
- Maximum DC Current : 500mA
- Length : 9.2mm
- Depth : 6mm
- Height : 5mm
- Dimensions : 9.2 x 6 x 5mm
- Tolerance : ±50%
- Maximum DC Resistance : 750mΩ
- Series : WE-SL2
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 100kHz
- Inductor Construction : Dual
- CODE No.:432-4524
