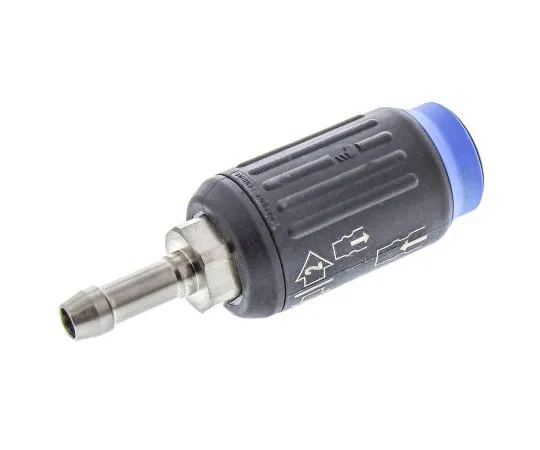

63-7539-16 Legris Pneumatic Quick Connect Coupling Reinforced Polymer 8mm Hose Barb 9421U06 08
Product Description
Product Model: 63-7539-16Product Brand: Legris Features […]
Contact Us
Product Details
Product Model: 63-7539-16
Product Brand: Legris
Features
- Series 23 Self Venting 'Safety' C9000 Types. Complies with the requirement of ISO 4414 and EN983 safety standards Simple on hand operation, yet specifically designed to eliminate accidental disconnection Very fast vent time - under 1 second Very high flow and low pressure drop characteristics Lightweight and robust high impact glass reinforced polymer (Nylon 6.6 + 20%, Glass fibre), resistance to shocks and scratching Interchangeable with CEJN 430 and Rectus 30 Suitable for *** with Series 25KE self-venting safety type metal body
Spec
- Quantity:1piece
- Coupling G***er : Male
- Manufacturer Series : 9421U
- Connection Type : Hose Barb
- Hose Barb Connection : 8mm
- Material : Reinforced Polymer
- Maximum Operating Pressure : 16 bar
- Seal Material : Nitrile Rubber
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +60°C
- CODE No.:431-7150
