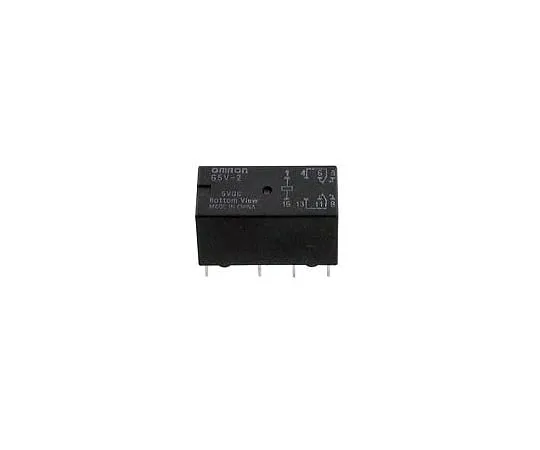

63-3157-13 DC5V mini Relay G5V-2 G5V2DC5V
model:
63-3157-13
brand:
OMRON Corporation
Product Description
Product Model: 63-3157-13Product Brand: OMRON Corporati […]
Contact Us
Product Details
Product Model: 63-3157-13
Product Brand: OMRON Corporation
Features
- This is a relay with a coil voltage of 5V attached to a printed circuit board and two circuit C contacts (ON-ON).
Spec
- Implementation printed circuit boards
- Contact Poles 2c
- Coil rating DC Voltage DC5V
- Coil rated current 100 mA
- rating/Coil operating voltage 75% or less
- rating/Coil return voltage 5% or more
- Contact rating (resistance load DC) 30 V -2.0 A
- Contact rating (resistance load AC) 125 V -0.5 A
- Contact contact mechanism Crossbar twin
- Protective structure plastic seal
- Size: 20.5 × 10.1 × 11.5 mm
- Operating temperature range (° C) -25 ° C to + 65 ° C
- Remarks
- [technical information] Relay
