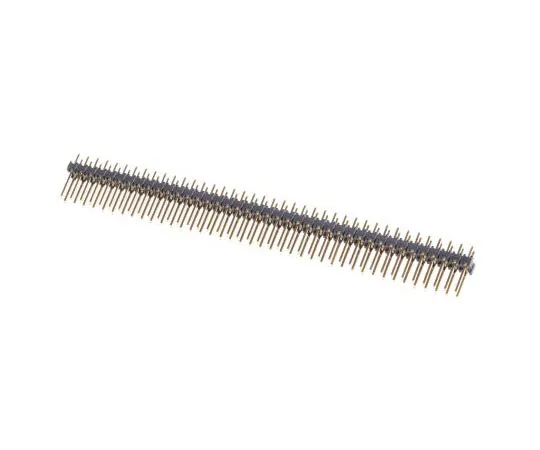

63-7536-97 Stelvio Kontek 473, 80 Way, 2 Row, Straight Pin Header 613080264421
Electronic/Electrical Parts and Controll Equipments

63-7536-97 Stelvio Kontek 473, 80 Way, 2 Row, Straight Pin Header 613080264421

model: 63-7536-97
brand: Stelvio Kontek

Product Description

Product Model: 63-7536-97Product Brand: Stelvio Kontek […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7536-97
Product Brand: Stelvio Kontek

Features

  • HE13, IEC 603-8. Divisible Strip Headers. From Stelvio Kontek, these Divisible Strip Headers are a great way to connect insulated wiring to printed circuit boards. Available in either right angled or straight versions, and in single or double row strips, these divisible strip headers can be cut down to suit the requirements of a connection. Secured with black GF thermoplastic, the strip headers have an operating temperature of -55°C to +125°C and an insulation resistance of 10⁴ MΩ minimum. Stelvio Kontek Divisible Strip Headers also feature: Rec. Hole dia 1.0mm 20N insulation contact holding force Contact Plating: 0.2μm of gold on 1.27μm of nickel

Spec

  • Quantity:1bag(5pieces)
  • Series : 473
  • Pitch : 2.54mm
  • Number of Contacts : 80
  • Number of Rows : 2
  • Body Orientation : Straight
  • Shrouded/Unshrouded : Unshrouded
  • Tail Pin Length : 3mm
  • Termination Method : Solder
  • Contact Material : Phosphor Bronze
  • Voltage Rating : 1 kV ac
  • CODE No.:423-2879
