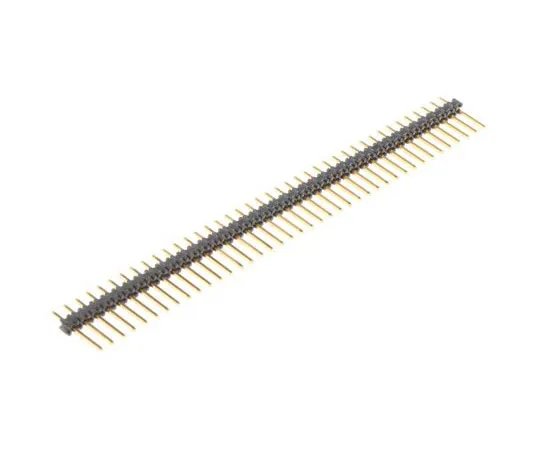

63-7536-90 Stelvio Kontek 471, 40 Way, 1 Row, Straight Pin Header 613040168921
model:
63-7536-90
brand:
Stelvio Kontek
Product Description
Product Model: 63-7536-90Product Brand: Stelvio Kontek […]
Contact Us
Product Details
Product Model: 63-7536-90
Product Brand: Stelvio Kontek
Features
- HE13, IEC 603-8. Divisible Strip Headers. From Stelvio Kontek, these Divisible Strip Headers are a great way to connect insulated wiring to printed circuit boards. Available in either right angled or straight versions, and in single or double row strips, these divisible strip headers can be cut down to suit the requirements of a connection. Secured with black GF thermoplastic, the strip headers have an operating temperature of -55°C to +125°C and an insulation resistance of 10⁴ MΩ minimum. Stelvio Kontek Divisible Strip Headers also feature: Rec. Hole dia 1.0mm 20N insulation contact holding force Contact Plating: 0.2μm of gold on 1.27μm of nickel
Spec
- Quantity:1bag(5pieces)
- Series : 471
- Pitch : 2.54mm
- Number of Contacts : 40
- Number of Rows : 1
- Body Orientation : Straight
- Mating Pin Length : 7mm
- Tail Pin Length : 3mm
- Termination Method : Solder
- Contact Material : Phosphor Bronze
- Voltage Rating : 1 kV ac
- CODE No.:423-2835
