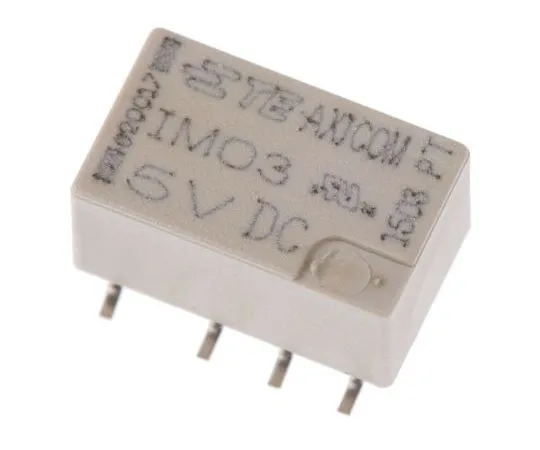

63-7536-28 TE ConnectivityIM DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 2A IM03GR
model:
63-7536-28
brand:
TE Connectivity
Product Description
Product Model: 63-7536-28Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7536-28
Product Brand: TE Connectivity
Features
- UL. Telecom/Signal Relay IM Series. Slimline and low profile - 10x6x5.65 mm Gull wing SMT legs Bifurcated contacts, gold plated Hermetically sealed (RT V), IP67 High mechanical shock resistance up to 300G functional, 500G survival Insulation resistance at 500Vdc >10 9 Ω High surge capability - meets Telcordia TR-NWT-001089 (2 / 10 μs) & EC 60950 (10 / 700 μs)
Spec
- Quantity:1piece
- Coil Voltage : 5V dc
- Coil Power : 140mW
- Coil Resistance : 178 Ω
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 2A
- Terminal Type : Surface Mount
- Height : 5.65mm
- CODE No.:422-7063
