Features

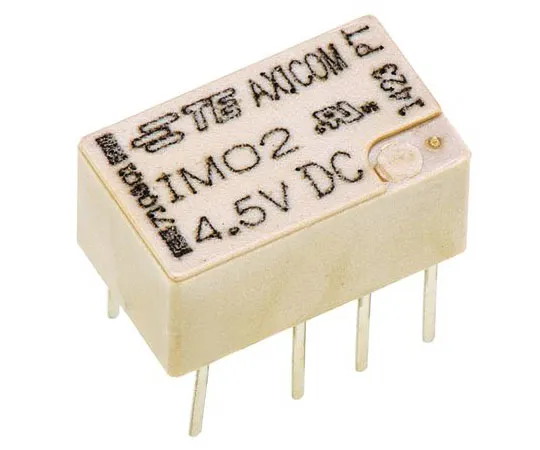

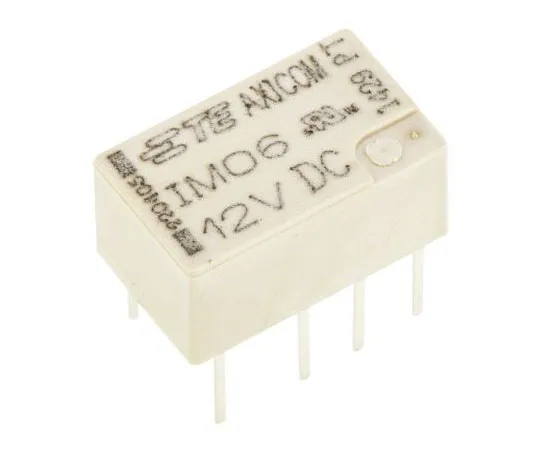

• UL. TE Connectivity PCB Mount Signal Relay - IM Series. IM series slimline PCB mount signal relays with a low profile of 5.65mm that occupy a minimum board space of 60mm². These slimline IM series PCB mount signal relays have a low coil power consumption of 140mW for standard coil, 100mW for bistable and 50mW for the ultra high sensitive versions, along with a high dielectric surge capability and 300g mechanical shock resistance. Features and Benefits:. Slimline and low profile - 10x6x5.65 mm Bifurcated contacts, gold plated Hermetically sealed (RT V), IP67 High mechanical shock resistance up to 300G functional, 500G survival Insulation resistance at 500V dc >10⁹Ω High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45. 1500V between open contacts and 2500V between coil and contacts. Applications:. Telecommunication equipment Optical network terminals Office equipment Test and measurement equipment Medical equipment Automotive applications
