63-7535-08 Vega VEGASWING 61 Series Horizontal, Vertical Mounting Level Switch Relay Output SWING61XXGBVXPRX
Electronic/Electrical Parts and Controll Equipments

63-7535-08 Vega VEGASWING 61 Series Horizontal, Vertical Mounting Level Switch Relay Output SWING61XXGBVXPRX

model: 63-7535-08
brand: Vega

Product Description

Product Model: 63-7535-08Product Brand: Vega Features V […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7535-08
Product Brand: Vega

Features

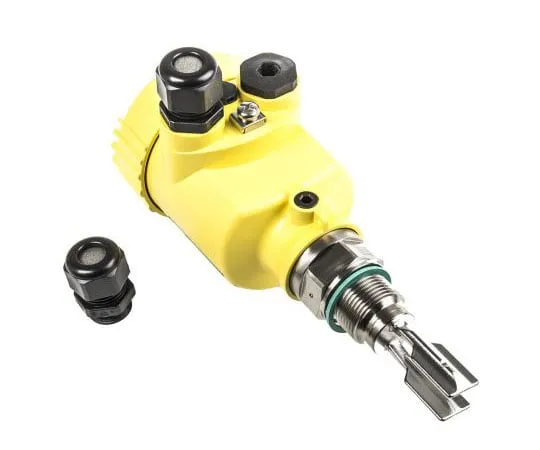

  • VEGASWING 61 Vibrating Level Switch for Liquids. The Vegaswing level sensor has been designed for *** in process technology but is ideal for *** with liquids. It has a simple yet robust measuring system and is easily unaffected by both the physical and chemical attributes of the liquid. Chemical Resistant Stainless Steel with PBT Housing External LED Switch Status Indication For Use With a Wide Range of Liquids, Pastes and Slurries Unaffected By Product Density, Viscosity, Conductivity, Dielectric Constant or External Vibrations Volt-Free DPDT Relay Output Maintenance-Free, With Optimum Factory Calibration Self-Monitoring and Selectable Fail Safe (min/max). Viscosity: 0.2 to 1000 mPa s Liquid Density: 0.7 to 2.5g/cm 3 Cable Entry: 2 x M20 x 1.5 CE Marked in Accordance with EMC Directive 89/336/EWG and LVD 73/23/EWG

Spec

  • Quantity:1piece
  • Device Type : Vibrating Rod
  • Mounting Type : Horizontal, Vertical
  • Switch Output : Relay
  • Body Material : Plastic
  • Minimum Operating Temperature : -50°C
  • Maximum Operating Temperature : +150°C
  • Maximum Current : 1 A dc, 3 A ac
  • Maximum Pressure : 64bar
  • Series : VEGASWING 61
  • CODE No.:419-4654
