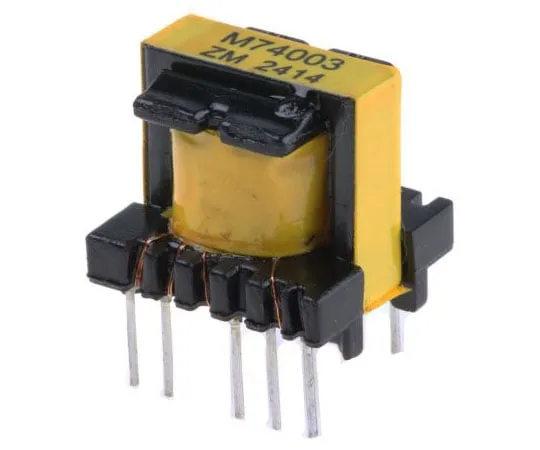

63-7534-82 2 Output 3 → 6W Flyback SMPS Transformer, 85 → 265V ac, 2.5 → 4 V ac, 3 → 6 V ac 74003
Product Description
Product Model: 63-7534-82Product Brand: Myrra Features […]
Contact Us
Product Details
Product Model: 63-7534-82
Product Brand: Myrra
Features
- IEC 950, IEC 61558 for reinforced insulation. Switch mode power transformers format E16 ; EL19, 1 W → 16 W. Transformers forming the core of a switch mode power supply, in association with a specialist circuit (VIPer, TOPSwitch, CoolSet, or control circuit + Mosfet). The secondaries can be connected in series. Materials comply with UL94-V0.
Spec
- Quantity:1piece
- Secondary Voltage Rating : 2.5 → 4 V ac, 3 → 6 V ac
- Primary Voltage Rating : 85 → 265V ac
- Power Rating : 3 → 6W
- Number of Outputs : 2
- Mounting Type : Through Hole
- Application : Flyback
- Secondary Current : 1.2 A, 1.8 A
- Termination Type : Pin
- Length : 18mm
- Width : 17.5mm
- Depth : 16mm
- Dimensions : 18 x 17.5 x 16mm
- Number of Phases : 1
- CODE No.:418-5509
