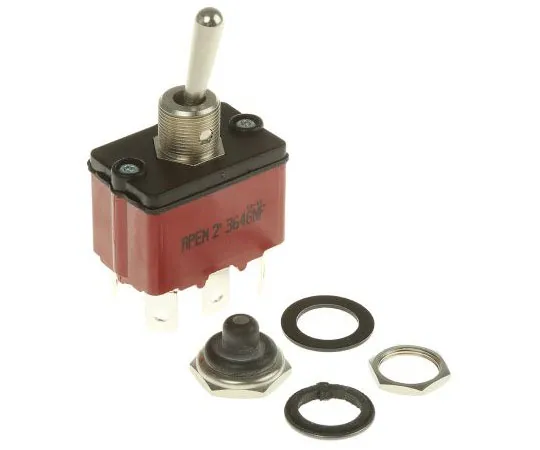

63-7533-70 APEM Double Pole Single Throw (DPST) Toggle Switch, Latching, IP67, Panel Mount 3646NF/2
Product Description
Product Model: 63-7533-70Product Brand: APEM Features U […]
Contact Us
Product Details
Product Model: 63-7533-70
Product Brand: APEM
Features
- UL. 3600NF Series - Sealed IP65. Sealed toggle switches with solid silver contacts especially suitable for external applications An internal o-ring together with the sealing boot provides a double level of protection 0.25in. solder/quick connect terminals Brass actuator and Phenolic case
Spec
- Quantity:1piece
- Contact Configuration : Double Pole Single Throw (DPST)
- Switch Operation : Latching
- Contact Current Rating : 12 A
- Mounting Type : Panel Mount
- Terminal Type : Solder, Tab
- IP Rating : IP67
- Actuator Length : 17.5mm
- Actuator Material : Brass
- Voltage Rating : 28V dc
- Contact Resistance : 10mΩ
- Operating Temperature Range : -40 → +85°C
- CODE No.:417-5489
