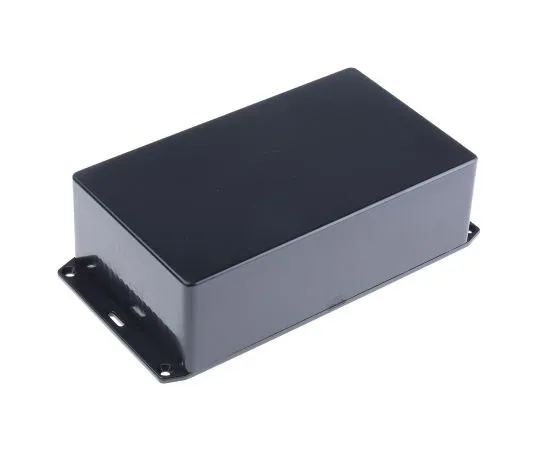

63-7533-34 Hammond 1591, Polystyrene Enclosure, IP54, Flanged, 191 x 110 x 57mm 1591ESFLBK
Product Description
Product Model: 63-7533-34Product Brand: Hammond Feature […]
Contact Us
Product Details
Product Model: 63-7533-34
Product Brand: Hammond
Features
- UL flammability rating of 94V-0. Dimensions do not include the lid and exclude flanges (add 4mm to height for the lid) Black enclosures include black screws, all others - standard nickel finish screws. General Purpose ABS Enclosure Hammond 1591 Series - Flanged Lid. The Hammond 1591 Series of multi-purpose electronic instrument enclosures are ideally suited for mounting printed circuit boards. Enclosures are made from flame retardant ABS plastic and designed to meet IP rating IP54. Features and Benefits:. Ideally suited for mounting printed circuit boards. Integral card guides accept 1.5mm (0.062in.) PC cards. Lap joint construction provides protection against ingress of dust and splashing water, IP54. Lid is secured with 4x0.5in. Phillips screws, black to match enclosure. FAQ:. What does IP mean?. The IP rating is ***d to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture. For more information please, visit SELECTION section at the top of the page or click on Selection Guide of an Enclosures. What is supplied?. An enclosure with a lid. 4 x M3x10mm Phillips screws
Spec
- Quantity:1piece
- Body Material : Polystyrene
- External Dimensions : 191 x 110 x 57mm
- External Length : 191 mm
- External Width : 110 mm
- External Height : 57 mm
- IP Rating : IP54
- Colour : Black
- Lid Colour : Black
- Flanged : Yes
- Series : 1591
- Number Of Knockouts : 0
- CODE No.:415-2868
