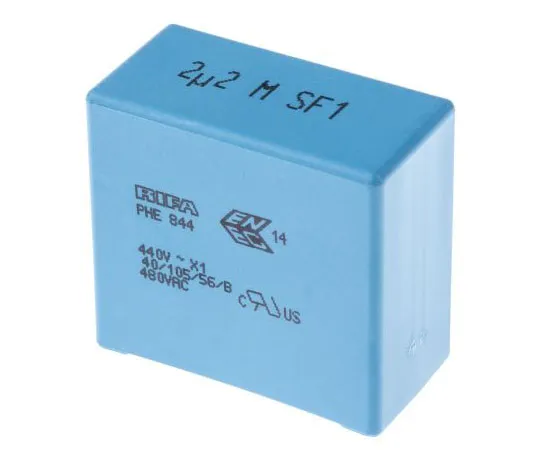

63-7533-05 KEMET 2.2μF Polypropylene Capacitor PP 440 V ac, 480 V ac ±20% Tolerance Through Hole PHE844 Series PHE844RR7220MR06L2
Product Description
Product Model: 63-7533-05Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-7533-05
Product Brand: KEMET
Features
- X capacitors are designed for connecting directly across a mains supply but should NOT be ***d in positions where failure of a capacitor would expose anybody to electric shock. ENEC, UL, CSA. PHE 844 Series. Metallised Polypropylene for *** as interference suppressors in X1 and across line applications Encapsulated in self-extinguishing material to meet the requirements of UL94V-0 Temperature Range -40°C to +105°C
Spec
- Quantity:1bag(84pieces)
- Capacitance : 2.2µF
- Voltage : 440 V ac, 480 V ac
- Mounting Type : Through Hole
- Tolerance : ±20%
- Series : PHE844
- Lead Pitch : 37.5mm
- Length : 41mm
- Depth : 21mm
- Height : 38mm
- Dimensions : 41 x 21 x 38mm
- Dielectric : Metallized Polypropylene
- Lead Diameter : 1mm
- CODE No.:172-6787
