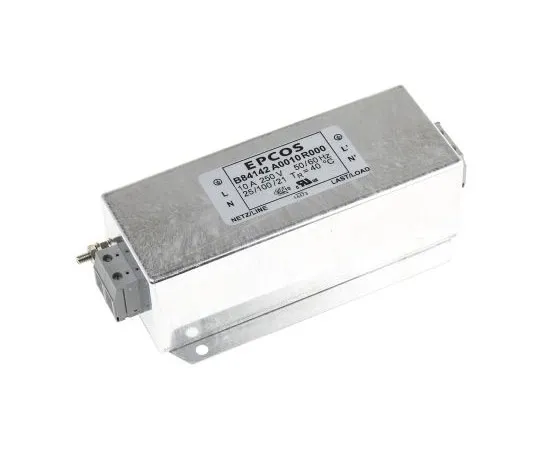

63-7532-29 EPCOS B84142-A Series 10A 250 V ac 60Hz Flange Mount RFI Filter, with Screw Terminals, Single Phase B84142A0010R000
Product Description
Product Model: 63-7532-29Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7532-29
Product Brand: EPCOS
Features
- UL1283 CSA22.2 No. 8 (construction). B84142-Ax-R Series. This series is a new development, that features a highly compact construction. Two-line filter for electrical systems in lifts, conveyor belts, pumps, ventilation systems and power supply units Very high insertion loss Optimized for very long motor cables under full load Low leakage current Protection type IP20
Spec
- Quantity:1piece
- Maximum Current Rating : 10A
- Maximum Voltage Rating : 250 V ac
- Mounting Type : Flange Mount
- Termination Style : Screw
- Number of Phases : 1
- Number of Stages : Two Stage
- Operating Frequency : 60Hz
- Length : 154.8mm
- Height : 44.5mm
- Dimensions : 154.8 x 70 x 44.5mm
- Leakage Current : 7.9 mA
- Resistance : 18mΩ
- Standards Met : UL 1283
- CODE No.:414-0792
