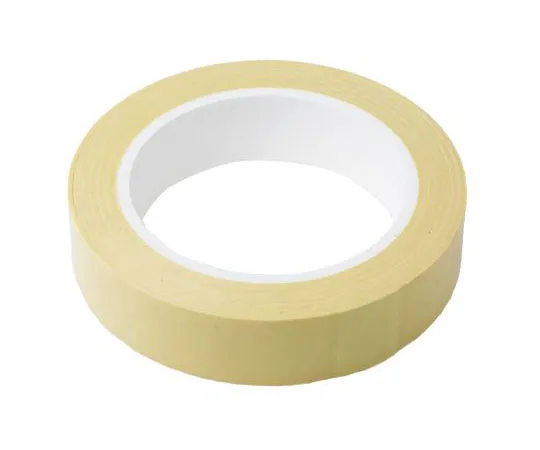

63-7529-63 RS PRO Yellow Electrical Tape, 25mm x 66m 408-9502
Product Description
Product Model: 63-7529-63Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7529-63
Product Brand: RS PRO
Features
- Class B 130°C Polyester Tape. A polyester tape with a rubber thermosetting adhesive ***d for electrical insulation of coils, electrolytic capacitors and small transformers, coil and inter layer insulation and phase separation of small 3 phase motors. Rubber thermosetting adhesive High temperature resistance Recognised by UL High electrical strength - breakdown voltage 4.5kV Good resistance to solvents
Spec
- Quantity:1piece
- Colour : Yellow
- Backing Material : Polyester
- Width : 25mm
- Length : 66m
- Thickness : 0.06mm
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +130°C
- Adhesive Material : Rubber Resin
- Trade Name : AT4004
- Adhesion Strength : 4.5 N/cm
- Elongation at Break : 90%
- Tensile Strength : 45N/cm
- Model Number : AT4004
- CODE No.:408-9502
