Features

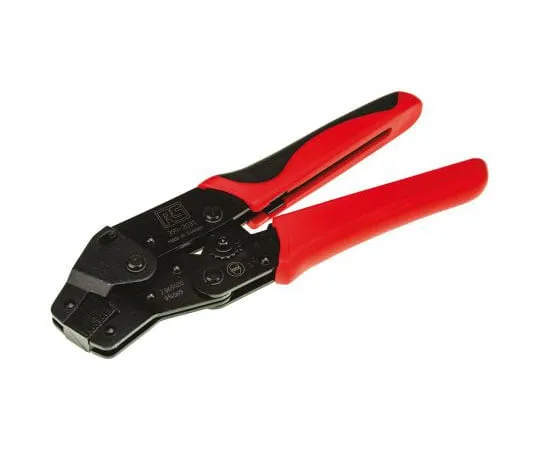

• RS PRO Ratchet Crimping Tool for Bootlace Ferrules. RS PRO Ratchet Crimping Tool. From RS PRO a durable, reliable and easy to *** hand operated crimping tool made from high-quality hardened alloy steel. This hand tool consists of two handles with a non-slip ergonomic design for comfortable ***, a ratchet mechanism, and a die assembly. This tool is front *** feeding and creates a square crimp. Ratchet Mechanism. The ratchet is pre-set to a specific force and remains locked until the handles of the tool are fully closed and the dies are bottomed. The handles cannot be opened until a full crimping cycle is achieved therefore preventing partial crimps. Once the cycle is complete the handles re-open. The ratchet also enables the operator to repeatedly produce consistent, high-quality crimps This hand crimp tool also features a ratchet release trigger which, when pressed, releases the tool handle in the event of obstructions or miscrimps. Adjustable Crimp Force. This hand crimping tool features a cam that is ***d to adjust the crimping force. The cam locking bolt and washer are removed using an Allen key and cam is simply turned to either loosen or tighten the tool. Once the required setting is selected the cam washer and bolt are locked back into place. Features and Benefits:. Durable and easy to *** Made from high-quality hardened alloy steel Ratchet mechanism ensures that full crimp cycle is achieved Ratchet release mechanism Adjustable crimping force Ergonomically designed, non-slip handles for comfortable *** Life span of 50000 cycles Importance of a High Quality Crimp When a crimping tool is ***d on a terminal, two crimps take place at the same time. One is the electrical connection between conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage. FAQS. What Terminals can this Crimping Tool be ***d with? This hand crimping tool is designed for crimping bootlace ferrules with a wire size range of 0.5 sq mm to 6 sq mm.
