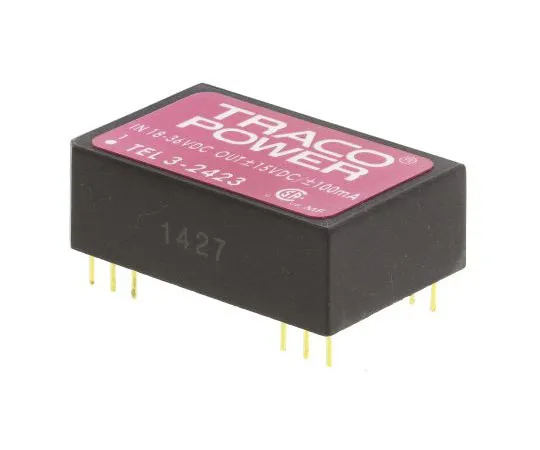

63-7524-69 TRACOPOWER TEL 3 3W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out ±15V dc TEL 3-2423
Product Description
Product Model: 63-7524-69Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-7524-69
Product Brand: TRACOPOWER
Features
- UL 60950-1, IEC/EN 60950-1. UL, cUL, EN, IEC, CSA File No. 226037. 3. Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEL-3 Series. The Traco Power TEL-3 series is a range of isolated, 3 Watt, DC-DC converters in a DIP-24 package. With their high efficiency these regulated converters allows operation temperature up to 71°C at full load and low output noise. The TEL-3 series feature wide input range and tightly regulated output voltage, which qualifies these DC-DC converters for many cost critical applications in industrial and consumer electronics. Wide 2:1 and 3:1 input range High efficiency up to 81% DIL-24 plastic package Indefinite short-circuit protection I/O isolation 1500 VDC Available with industry standard pinout (NP) Operating temperature range –40°C to +85°C
Spec
- Quantity:1piece
- Output Voltage : ±15V dc
- Input Voltage Range : 18 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1500V dc
- Power Rating : 3W
- Output Current : ±100mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Efficiency : 81%
- Package : DIP 24
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 10.2mm
- CODE No.:396-5225
