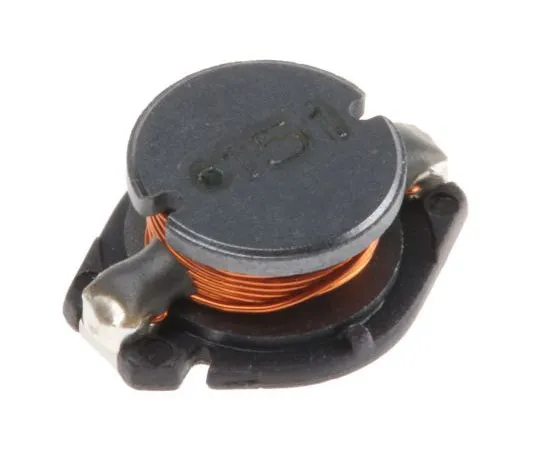

63-7524-41 Wurth WE-PD4 Series Unshielded Wire-wound SMD Inductor with a Ferrite Core, 150 μH ±10% 1A Idc 74456215
model:
63-7524-41
brand:
Wurth Elektronik
Product Description
Product Model: 63-7524-41Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-7524-41
Product Brand: Wurth Elektronik
Features
- WE-PD4 Series Wire Wound Chokes. Wurth WE-PD4 wire wound surface mount inductor is a compact design and has a low loss ferrite core. These power inductors have current ratings up to 15A and can be ***d at frequencies up to 10 MHz. Applications: High efficiency SMPSUs, interference suppression. Operating temperature: -40°C to +125°C
Spec
- Quantity:1bag(2pieces)
- Inductance : 150 μH
- Maximum DC Current : 1A
- Length : 12.7mm
- Depth : 10mm
- Height : 5mm
- Dimensions : 12.7 x 10 x 5mm
- Shielded : No
- Tolerance : ±10%
- Maximum DC Resistance : 590mΩ
- Series : WE-PD4
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 6MHz
- Maximum Operating Temperature : +125°C
- CODE No.:396-3241
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-6999-71 Arcol Ohmite 220Ω 1W Ceramic Resistor ±10% Minimum of -1300ppm/°C OX221KE
model: 63-6999-71
brand: Ohmite
Electronic/Electrical Parts and Controll Equipments
63-7972-08 Pepperl + Fuchs Inductive Sensor 8 mm Detection, M18 x 1, NO, 40mm Length, 5 → 60 V dc supply voltage NBN8-18GM40-Z0
model: 63-7972-08
brand: Pepperl + Fuchs
Electronic/Electrical Parts and Controll Equipments

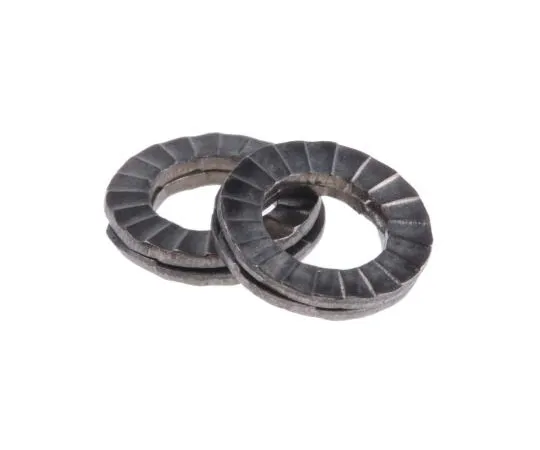

63-8025-54 Stainless Steel Wedge Lock Lock Washer, A4 316 HLS-5S
