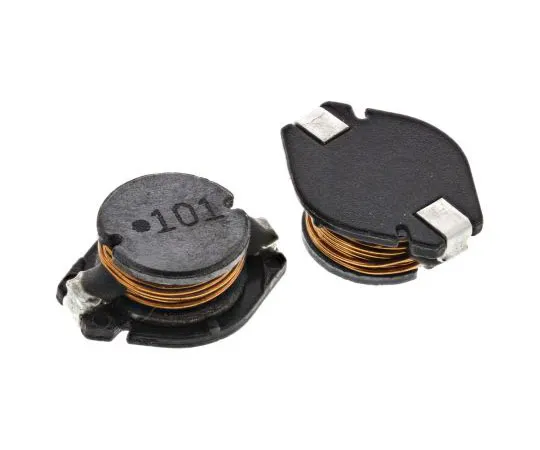

63-7524-39 Wurth WE-PD4 Series Unshielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±10% 1.4A Idc 7445620
model:
63-7524-39
brand:
Wurth Elektronik
Product Description
Product Model: 63-7524-39Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-7524-39
Product Brand: Wurth Elektronik
Features
- WE-PD4 Series Wire Wound Chokes. Wurth WE-PD4 wire wound surface mount inductor is a compact design and has a low loss ferrite core. These power inductors have current ratings up to 15A and can be ***d at frequencies up to 10 MHz. Applications: High efficiency SMPSUs, interference suppression. Operating temperature: -40°C to +125°C
Spec
- Quantity:1bag(2pieces)
- Inductance : 100 μH
- Maximum DC Current : 1.4A
- Length : 12.7mm
- Depth : 10mm
- Height : 5mm
- Dimensions : 12.7 x 10 x 5mm
- Shielded : No
- Tolerance : ±10%
- Maximum DC Resistance : 330mΩ
- Series : WE-PD4
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 8MHz
- Minimum Operating Temperature : -40°C
- CODE No.:396-3099
