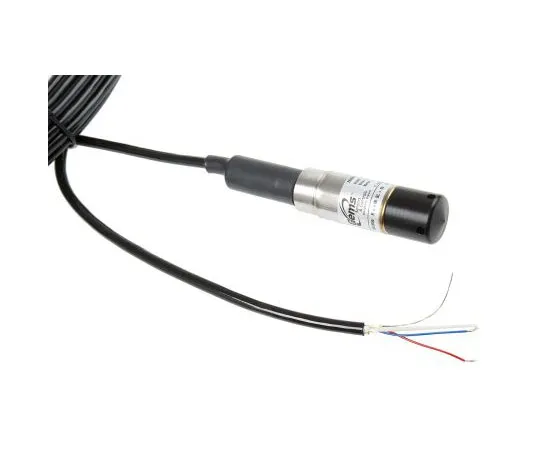

63-7523-76 Gems Sensors Gauge Pressure Sensor, 0.5bar Max Pressure Reading , 7 → 35 V dc, IP68 2600BGA1019M3HA017
Product Description
Product Model: 63-7523-76Product Brand: Gems Sensors Fe […]
Contact Us
Product Details
Product Model: 63-7523-76
Product Brand: Gems Sensors
Features
- Submersible Pressure Based Level Transmitter. Water head pressure equals 100mbar/metre which can be measured using submersible pressure transmitters in atmospheric tanks Stainless steel wetted parts Zero/span tolerance; 0.1% Maximum overpressure: 2 x FS Electrical connection via moulded cable suitable for immersion Dimensions: body diameter;27.3mm, body length; 100mm
Spec
- Quantity:1piece
- Pressure Reading Type : Gauge
- Minimum Pressure Reading : 0bar
- Maximum Pressure Reading : 0.5bar
- Accuracy : 0.25 %
- Output Type : Amplified
- Analogue Output : 4 → 20 mA
- Response Time : 0.5 ms
- Maximum Current : 20 mA
- Supply Voltage : 7 → 35 V dc
- Housing Material : Stainless Steel
- IP Rating : IP68
- Maximum Operating Temperature : +50°C
- CODE No.:395-7101
