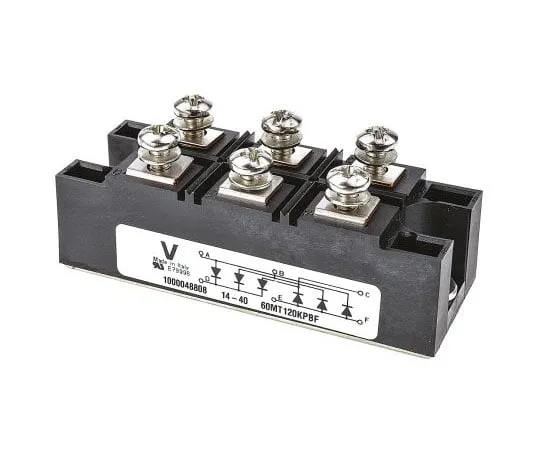

63-7523-01 Vishay VS-60MT120KPBF, 3-phase Bridge Rectifier Module, 60A 1200V, 6-Pin INT-A-PAK VS-60MT120KPBF
Product Description
Product Model: 63-7523-01Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7523-01
Product Brand: Vishay
Features
- UL E78996. Three Phase Bridge Rectifiers with Screw Terminals, VS-60MT/70MT.KPbF Series, Vishay Semiconductor. Industry standard INT-A-PAK package, fully compatible with power modules High thermal conductivity package, electrically insulated case Excellent power volume ratio, outline for easy connections Isolating voltage 4000Vrms
Spec
- Quantity:1box(15pieces)
- Bridge Type : Three Phase
- Peak Average Forward Current : 60A
- Peak Reverse Repetitive Voltage : 1200V
- Mounting Type : Panel Mount
- Package Type : INT-A-PAK
- Pin Count : 6
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 440A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 1.75V
- Peak Reverse Current : 100µA
- Length : 94mm
- Width : 35mm
- CODE No.:169-5922
