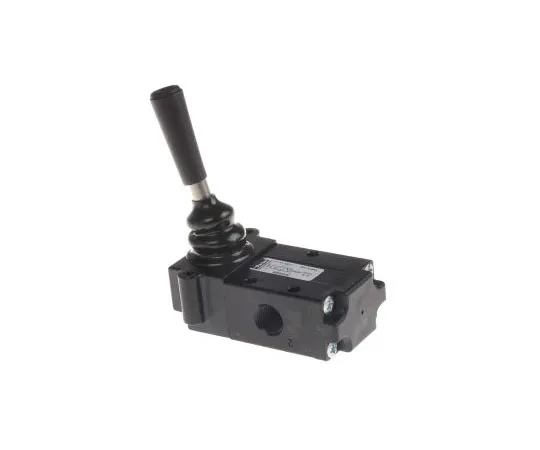

63-7520-22 Parker Lever 3/2 Pneumatic Manual Control Valve B53 Series B53003L
Product Description
Product Model: 63-7520-22Product Brand: Parker Features […]
Contact Us
Product Details
Product Model: 63-7520-22
Product Brand: Parker
Features
- Lever Valve. Range of manually operated valves Stainless steel spool giving long, trouble free service life Viton™ seals as standard Suitable for positive pressure or vacuum line applications
Spec
- Quantity:1piece
- Control Mechanism : Lever
- Function : 3/2
- Connection Port Thread : G 1/4
- Thread Size : 1/4in
- Thread Standard : G
- Manufacturer Series : B53
- Maximum Operating Pressure : 10 bar
- Body Material : Die Cast Zinc
- Maximum Flow Rate : 1740L/min
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +80°C
- Number of Ports : 3/2
- CODE No.:389-6652
