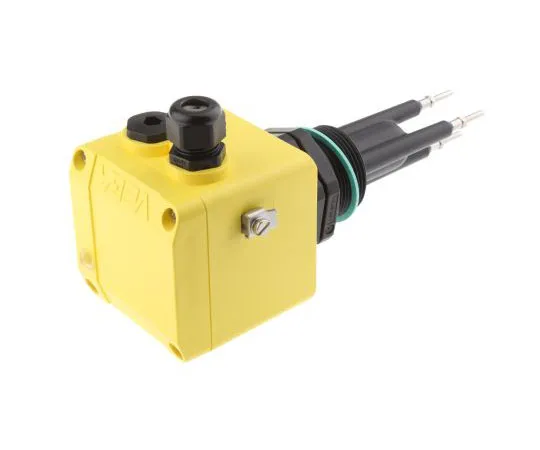

63-7518-79 Vega VEGACON 66 Series Vertical Mounting Level Switch Relay Output KON66.XG3VPR
Product Description
Product Model: 63-7518-79Product Brand: Vega Features V […]
Contact Us
Product Details
Product Model: 63-7518-79
Product Brand: Vega
Features
- VEGACON 66 Conductivity Level Switch. Alarm or pump control for controlling between two levels 3 electrode holders Modes: max detection, overfill (A) or min detection dry run protection (B) External LED switch status 3 electrode holders Selectable sensitivity; 100Ω to 300kΩ Integration time adjustable up to 20 secs 1m x 4mm diameter stainless steel electrodes need to be ordered separately (see stock no. < 387-0385') 387-0385. These can be cut to length to suit application
Spec
- Quantity:1piece
- Device Type : Conductive
- Mounting Type : Vertical
- Switch Output : Relay
- Body Material : Plastic
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +100°C
- Maximum Current : 1 A dc, 3 A ac
- Maximum Pressure : 6bar
- Series : VEGACON 66
- CODE No.:387-0379
