Features

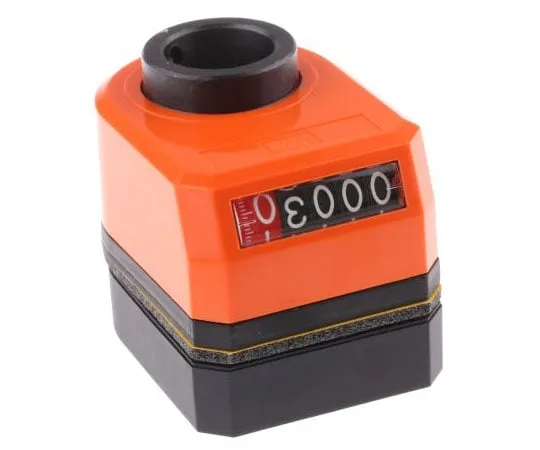

• Mechanical Position Indicator. Mechanical devices for reading settings and outputs on machinery and equipment requiring adjustment by means of rotating shafts or lead screws. Operating ***:. To give an exact reading of distance moved by relating the reading of the indicator to the thread pitch of the shaft or lead screw (type dep***ant on pitch - see table). To count the number of turns of a shaft (types 001.00 or 0001.0), allowing an operator to set a specific setting to perform a given function. Fitting Instructions:. Drill 6mm by 10mm deep hole 22mm from centre of shaft to accept rear locating pin Zero set shaft and indicator reading Locate on shaft and tighten grub screw. Five digit counter with magnified lens Clockwise shaft rotation Impact resistant thermoplastic case Ultrasonically welded to prevent tampering and dirt ingression Rear brass bushing with double sealing to IP67 DD52R comprises of 37mm deep indicator and 14mm spacer
