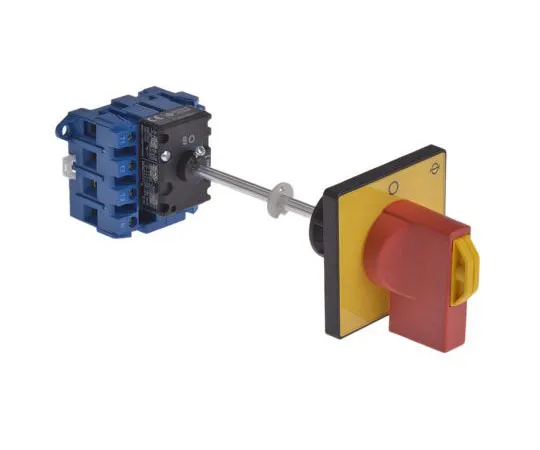

63-7515-96 4 Pole DIN Rail Non F***d Isolator Switch, 32 A, 11 kW, IP65 KG32B T204/GBA302 VE
model:
63-7515-96
brand:
Kraus & Naimer
Product Description
Product Model: 63-7515-96Product Brand: Kraus & Nai […]
Contact Us
Product Details
Product Model: 63-7515-96
Product Brand: Kraus & Naimer
Features
- BS EN 60947-3, EN 60947-3, IEC 60947-3, VDE 0660, EN 60204-01. Stated motor rating, Util. Cat. AC23A/AC3, is for 3 phase, 380/440V supply. Single Hole Mounting Operator 3 ; 4 Pole Switch-Disconnectors, IP65. Single hole mounting Handle padlockable (x4) in "OFF" position Adjustable metal operating shaft, length 120mm Door interlocked to prevent opening of panel door while switch is in the 'ON' postion Fingerproof terminal on 25 to 63A switches Live terminal cover provided for 80A ; 100A switches Nominal voltage: 690V Side mounting auxiliary contacts can be added, see typically stock no. ; 319-691 319-691 Base mounting via DIN rail or screw to back of panel
Spec
- Quantity:1piece
- Number of Poles : 4
- Maximum Current : 32 A
- Mounting Type : DIN Rail
- Power Rating : 11 kW
- IP Rating : IP65
- Accepts Padlocks : Yes
- Voltage Rating : 690 V ac
- Auxiliary Contacts Available : Yes
- Electrical Phase : 3
- Length : 55.5mm
- Width : 54mm
- Depth : 50mm
- Maximum Operating Temperature : +55°C
- CODE No.:381-3900
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7782-67 Nichicon 1000μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 16 (Dia.) x 25mm +105°C 16mm 7.5mm UVY1J102MHD
model: 63-7782-67
brand: NICHICON
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments

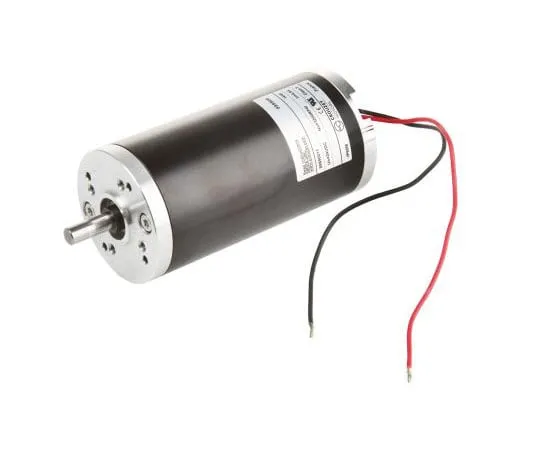

63-7983-78 Crouzet Brushed DC Motor, 209 W, 24 V dc, 290 mNm, 3430 rpm, 8mm Shaft Diameter 89890011
