Electronic/Electrical Parts and Controll Equipments

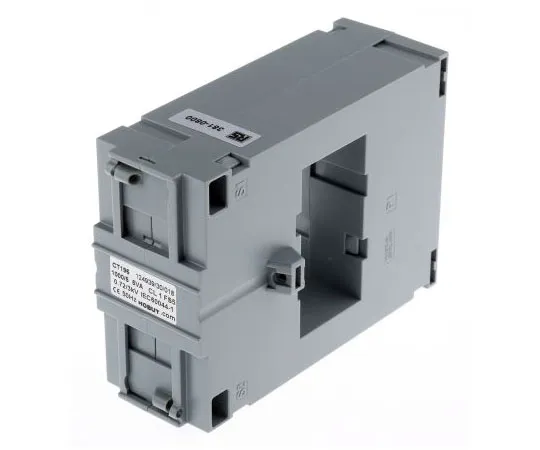

63-7515-82 HOBUT Base Mounted Circuit Transformer, -30 → +85 °C, 1000:5 CT196M1000/5-5/1
Product Description
Product Model: 63-7515-82Product Brand: HOBUT Features […]
Contact Us
Product Details
Product Model: 63-7515-82
Product Brand: HOBUT
Features
- Base/Busbar Mounting Current Transformer. Moulded case with sliding sealable terminal covers Operating temperature range –30 to +85°C Screw or push on terminal connectors Secondary terminals M5 studs with washers, lock washers and nuts Narrow width allows close mounting between busbars Insulation voltage 0.72/3kV 125 x 66 x 90mm (H/W/D) 50mm aperture suitable for circular conductors Protection to IP20 Conforms to IEC44-1, IEC 185 and BS7626 CE Marked in compliance with relevant European Directives
Spec
- Quantity:1piece
- Current Ratio : 1000:5
- Inner Diameter : 45mm
- Transformer Type : Base Mounted
- Overall Height : 126mm
- Overall Width : 90mm
- Overall Depth : 60mm
- Minimum Temperature : -30°C
- Maximum Temperature : +85°C
- CODE No.:381-0800
