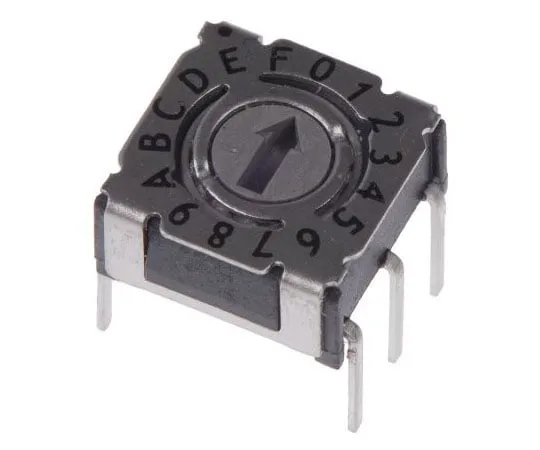

63-7514-95 16 Way Through Hole DIP Switch 16P, Rotary Flush Actuator P36103
Product Description
Product Model: 63-7514-95Product Brand: Hartmann Featur […]
Contact Us
Product Details
Product Model: 63-7514-95
Product Brand: Hartmann
Features
- Rotary Encoded Low Profile In-Line Switches. P36THR1 versions have (L508) left angular 5.08mm terminals. Flux sealed ; process washable Contact rating: 150mA @ 24Vdc Contact resistance: ;80mΩ Mechanical life: >10 ;sup>4 ;/sup> operations Operating temperature: -30 to +90°C Positive detent 340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max Gold plated contacts
Spec
- Quantity:1piece
- Contact Configuration : 16P
- Contact Current Rating : 100 mA@ 24 V dc
- Contact Material : Gold over Nickel Plated Stainless Steel
- Number of Positions : 16
- Mounting Type : Through Hole
- Actuator Type : Rotary Flush
- Package Style : DIP
- Mechanical Life : 10000Operations
- Maximum Operating Temperature : +90°C
- Minimum Operating Temperature : -30°C
- Operating Temperature Range : -30 → +90°C
- CODE No.:379-3941
